NC 4-24X56

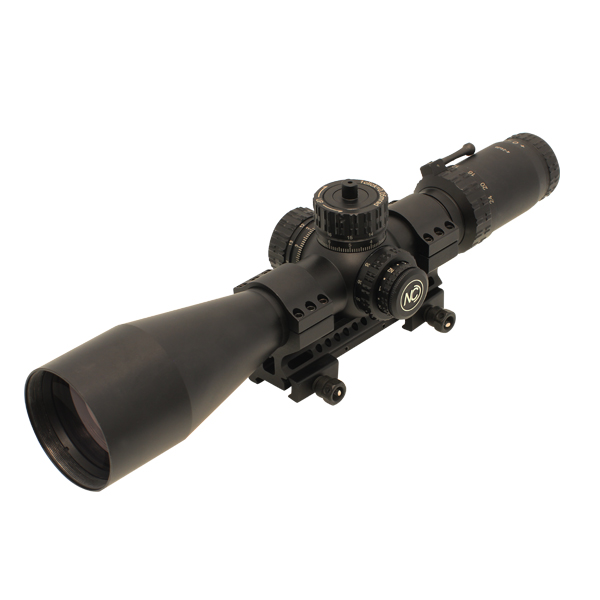

The NC 4-24×56 is a daytime riflescope which features variable magnification and is designed for use on a variety of weapon platforms. The riflescope features a Mil-Dot or MoA reticle positioned in the first focal plane of the eyepiece, ensuring permanent sizing of the reticle regardless of the variable magnification setting being utilized. The reticle is LED-lit.

Ideal for acquiring small targets at long distances, the riflescope is equipped with a central system parallax adjustment, effective for ranges of 50 meters to infinity. The riflescope incorporates windage adjustment and elevation adjustment. The unit has tactile/audible step adjustments.

Variable magnification
Central system parallax adjustment
Tactile/audible step adjustments

Optics

Minimum magnification (x)

4

Maximum magnification (x)

24

Objective lens diameter (mm)

56

Tube diameter (mm)

30

Exit pupil diameter @ 4x (mm)

7

Exit pupil diameter @ 24x (mm)

1.85

Field of view @100 y @ 4x (ft)

23.9

Field of view @100 y @ 24x (ft)

2.7

Eye relief (mm)

100

Diopter adjustment range

±2

Ballistics

Reticle pattern

MOA or Mil-Dot

Lit reticle

Windage adjustment step (MOA)

0.25

Windage adjustment range (MOA)

60

Elevation adjustment step (MOA)

0.25

Elevation adjustment range (MOA)

60

Mechanics, Electronics & Environmental
Dimensions (mm) 386x70x70
Weight (kg),w/o mount <0.8
Shock resistance (G) 1,000
Battery type CR 2032 (3 V)
Battery life, maximum (hours) 100
Operating temperature range (°C) -30 to +50
Storage temperature range (°C) -35 to +60
Humidity (%) 98
Waterproofing MIL-STD-810G
