| 3,000 metre range |
| Distance, Azimuth and Elevation measurements |
| Measurements between two objects |
| Android™/Bluetooth Compatible |

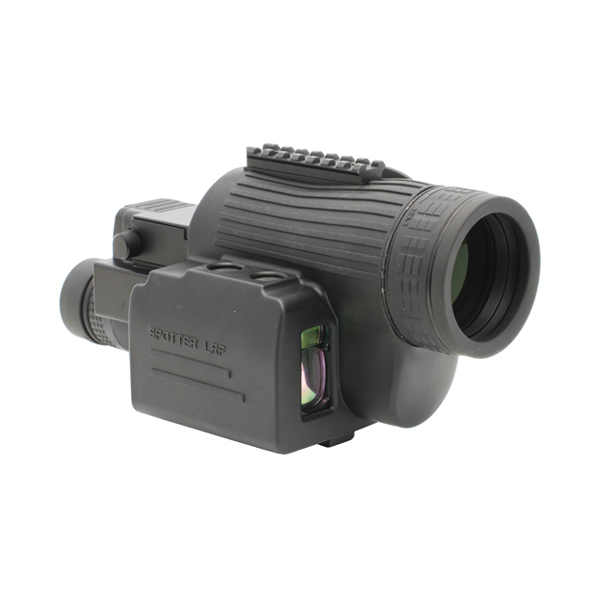

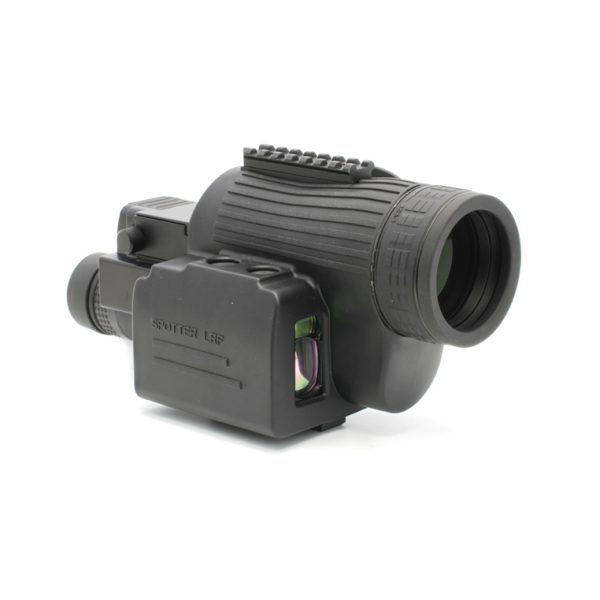

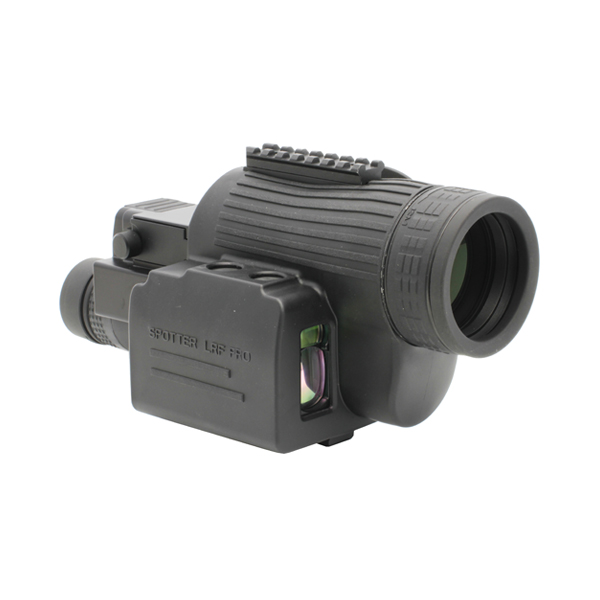

The Spotter LRF PRO is the first of its kind—a combined spotting scope/laser rangefinder system. It makes it faster, easier and more accurate than ever before to acquire range, inclination and azimuth data on long distance targets.

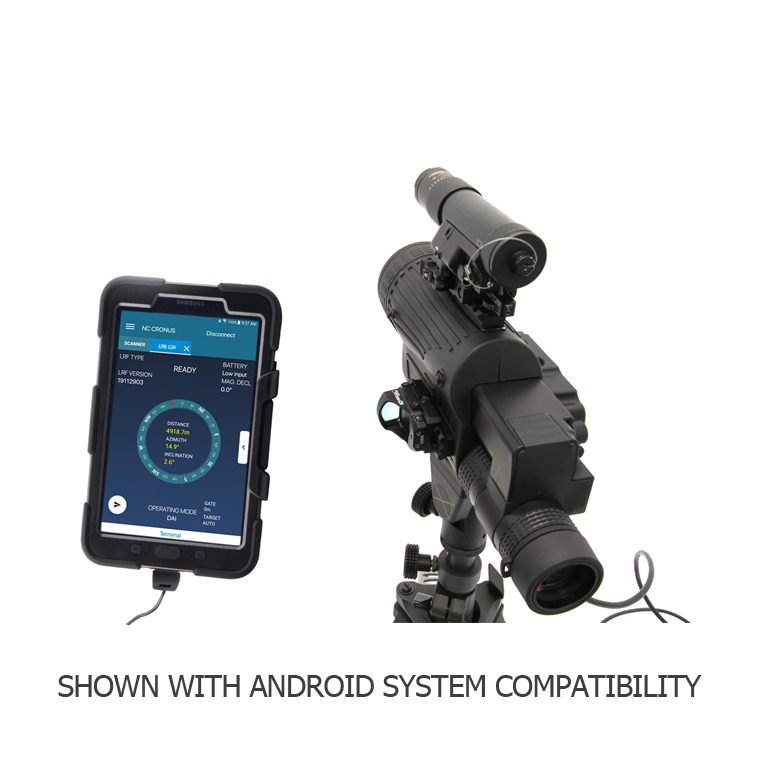

This model is built to MIL-STD-810G standards and is fully ruggedized to handle real-world military deployment. With 15-45x variable magnification, fully multi-coated optics, an etched mil-dot reticle, Bluetooth/USB output , and LED display, the Spotter LRF PRO is among the most versatile optics you can bring with you to the field. This model is compatible with an Android™-based application, Bluetooth capability (BT version) with ballistic calculator, and other peripheral devices. Users can now communicate with the SPOTTER LRF PRO using Newcon Optik’s new NC Cronus app.
This device is compatible with:
Android™
Bluetooth™
Ballistic app
NC Cronus™
CivTAK/ATAK
| 3,000 metre range |
| Distance, Azimuth and Elevation measurements |
| Measurements between two objects |
| Android™/Bluetooth Compatible |
|
Optical |
|
|
Magnification (x) |
15 – 45 |
|
Objective lens (mm) |
60 |
|
Exit pupil diameter (mm) |
4.17 – 1.34 |
|
Eye relief (mm) |
25 – 26 |
|
Field of view (°) |
3.4 (15x) -1.2 (45x) |
|
Axial resolution (center), (arcsec) |
3.0 |
|
Diopters adjustment range, dpt |
± 5 |
|
Device focusing range (m) |
8 – ∞ |
|
Laser Rangefinder |
|
|
Eye safety |
Class 1, eye safe |
|
Peripheral Compatibility |
Bal Comp, AFS, PC, AndroidTM |
|
Peripheral Compatibility (Optional) |
PLGR, BT and Available plug-ins for CivTAK/ATAK |
|
Wavelength (nm) |
1550 |
|
1064 nm laser protection |
Optional |
|
Specified Measuring range (m)* |
10 – 3,000 |
|
Display |
|
|
Aiming reticle type |
Etched reticle (MIL Dot) |
|
Display type |
Customized matrix OLED |
|
Display brightness control |
Manual (8 levels) |
|
Mechanical, Electronics and Environmental |
|
|
Dimensions (mm) |
280x140x105 |
|
Weight with battery (g) |
1,590 |
|
Operational temperature (°C) |
-35 to +55 |
|
Storage temperature (°C) |
-45 to +65 |
|
Waterproof |
1m/30min |
|
Environmental conditions |
MIL-STD-810G |
|
Tripod mounting pad |
Yes |
|
3-axis digital compass |
Yes |
|
Internal power supply |
2x CR123 Lithium |
|
Battery life (# of measurements) |
5,000 |
|
Nitrogen filled |
Yes |
|
Interface |
USB, Bluetooth (optional) |
* 2.3m x 2.3m NATO standard target
