Newcon Optik is a world leader in the laser rangefinder field. Each of our highly ruggedized models utilizes advanced laser, electronic and optical technologies not only to measure distance, but to provide a variety of other geospatial target information.

In addition to having NATO target measurement ranges spanning 1,500 to 12,000 meters, many of our models can be used with our AndroidTM – based application, allowing for real-time target mapping and geospatial data communication via mobile phones and tablets.

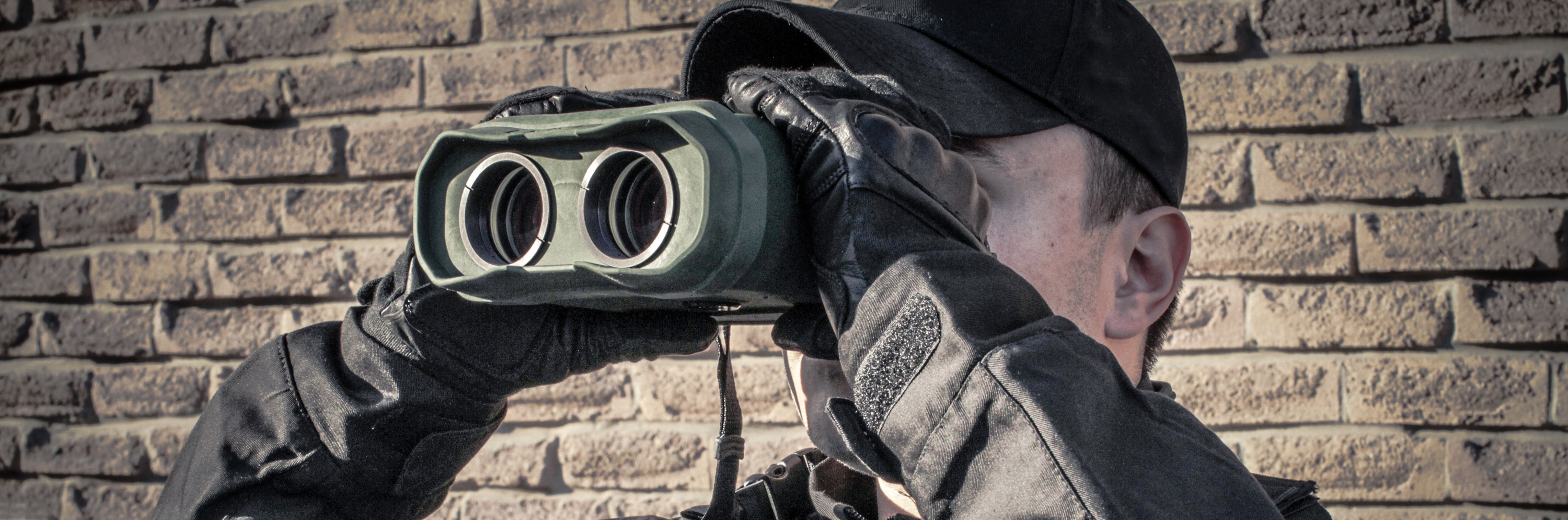

BINOCULARS

  • LRB 6K

    NSN#: 1240-20-010-6217

    The LRB 6K is built to outperform any handheld laser rangefinder binocular available today. Packing a virtually endless set of performance features into a MIL-SPEC form factor, the LRB 6K can handle anything professional operators can throw its way. A 6,000 metre (NATO target) measuring range, built-in digital magnetic compass, and a crystal clear LED display are combined into an invaluable force multiplier.

    The LRB 6K requires virtually no maintenance and very little operational training. Through USB, Bluetooth and RS-232 interfaces, the LRB 6K can be operated remotely, have its stored data exported, and communicate with external GPS systems and ballistic computers including Kestrel (only with Bluetooth installed).

  • LRB 12K

    The LRB 12K is built to outperform any handheld laser rangefinder binocular available today. Packing a virtually endless set of performance features into a MIL-SPEC form factor, the LRB 12K can handle anything professional operators can throw its way.

    A 12,000 metre (NATO target) measuring range, built-in digital magnetic compass, built-in GPS receiver, and a crystal clear LED display are combined into an invaluable force multiplier.

    The LRB 12K requires virtually no maintenance and very little operational training. Through USB and RS-232 interfaces, the LRB 12K can be operated remotely, have its stored data exported, and communicate with external GPS systems and ballistic computers.

  • LRB 12KNIGHT

    The LRB 12KNIGHT is built to outperform any handheld day/night laser rangefinder binocular available today. Packing a virtually endless set of performance features into a MIL-SPEC form factor, the LRB 12KNIGHT can handle anything professional operators can throw its way. A 12,000 metre (NATO target) measuring range, built-in digital magnetic compass, built-in GPS receiver, crystal clear LED display, and a Gen 3 night vision channel are combined into an invaluable force multiplier.

    The LRB 12KNIGHT requires virtually no maintenance and very little operational training. Through USB and RS-232 interfaces, the LRB 12KNIGHT can be operated remotely, have its stored data exported, and communicate with external GPS systems and ballistic computers.

  • LRB 3000PRO

    NSN#: 1240-20-004-5448

    The LRB 3000PRO laser rangefinder binocular combines uncompromised 7×40 optics with advanced data processing algorithms to measure target distances up to 3,000 meters (output display in yards also) while providing azimuth from a built-in digital compass.

    Low power-consumption (one battery lasts for more than 5000 shots), ergonomic rubber-armoured body, long eye-relief, simple two-button operation, and wide objective lenses make observation and distance measurement with these binoculars accurate and comfortable.

    Special version with an optional IP67 waterproof rating is available.

  • LRB 4000CI

    NSN#: 1240-20-001-9644

    The LRB 4000CI medium range laser rangefinder binoculars combine uncompromised 7×50 optics with advanced data processing algorithms. The rangefinder instantly measures distance up to 4,000 meters (output display in yards also), accurate azimuth and inclination via an in-built digital magnetic compass, and speed using the highly accurate time-of-flight delay method. LRB 4000CI also features RS-232 interface that enables immediate data acquisition by computers, external GPS receivers and various ballistic computers.

    A gating algorithm implemented in LRB 4000CI dramatically improves reliability of measurement in unfavourable measurement conditions (e.g. rain, snow, bushes, wires, etc). Low power-consumption (one battery lasts for more than 5000 shots), ergonomic rubber-armoured body, long eye-relief, simple two-button operation, and wide objective lenses make observation and distance measurement with these binoculars accurate and comfortable.

  • LRB 6000CI

    The LRB 6000CI medium range laser rangefinder binoculars combine uncompromised 7×50 optics with advanced data processing algorithms. The rangefinder instantly measures distance up to 6,000 meters (output display in yards also), accurate azimuth and inclination via an in-built digital magnetic compass, and speed using the highly accurate time-of-flight delay method. LRB 6000CI also features RS-232 interface that enables immediate data acquisition by computers, external GPS receivers and various ballistic computers.

    A gating algorithm implemented in LRB 6000CI dramatically improves reliability of measurement in unfavourable measurement conditions (e.g. rain, snow, bushes, wires, etc). Low power-consumption (one battery lasts for more than 5000 shots), ergonomic rubber-armoured body, long eye relief, simple two-button operation, and wide objective lenses make observation and distance measurement with these binoculars accurate and comfortable.

ACCESSORIES

  • NVS Connector

    NVS U Coupler is a clamp-on mechanical adapter with flip out feature that with various special provides the ability to attach a night vision monocular (PVS 14/NVS 14) to various day time instruments such as Laser Range Finders, Stabilized Image Binoculars, Daytime Weapon Scopes, etc.

  • LRF Car Adapter

    Cigarette lighter adapter for LRM 3500M / LRB 6K / 12K /12KNIGHT.


  • LRF GPS Cable

    For use with LRB 12K, 12KNIGHT and 6K; and LRB 4000CI and 6000CI. Connects devices to Rockwell Collins, DAGR, Polaris ™ and PLGR GPS receivers.

  • LRF Smart Cable

    Connects LRM 3500M, LRB 12K, LRB 12KNIGHT or LRB 6K to the micro USB port of Android-based devices.

  • LRF AC/DC Adapter

    AC/DC Adapter for LRM 3500M / LRB 6K / 12K / 12KNIGHT.

  • TACT 3-S Tripod

    The TACT-3S Model Tactical Tripod was selected by the US Army and US SOCOM for use in their ground target location systems. The TACT-3S is “amagnetic” and will not adversely influence any sensor device equipped with a digital magnetic compass. The TACT-3S is a rugged combat proven field tripod platform with a terrain-leveling gimbal that allows the user to adjust the position of the optical device for uneven terrain.

    This tripod is for use with a wide range of high magnification field optics, laser range finders, thermal cameras and night vision devices. The TACT-3S weighs approximately three pounds, has a versatile tripod head with a detachable base plate, multi-section mast, and a wide stable tripod base. The mast can be detached from the tripod base and used with an internal stored ground spike as a monopod. Constructed of high-strength, lightweight, aerospace-grade aluminum alloys, the TACT-3S deploys quietly and provides rock solid stability. This field tripod design allows shooters to use field optics comfortably from the prone to sitting positions.

  • NVS U Coupler

    NVS U Coupler is a clamp-on mechanical adapter with flip out feature that with various special provides the ability to attach a night vision monocular (NVS 14) to various day time instruments such as Laser Range Finders, Stabilized Image Binoculars, Daytime Weapon Scopes, etc.

  • NVS U Coupler Set

    NVS U Coupler is a clamp-on mechanical adapter with flip out feature that with various special provides the ability to attach a night vision monocular (PVS 14) or goggles (PVS7/NVS7) to various day time instruments such as Laser Range Finders, Stabilized Image Binoculars, Daytime Weapon Scopes, etc.
