LRB 6000CI
LRB 6000CIhandheldfieldtripodmounted

LRB 6000CI

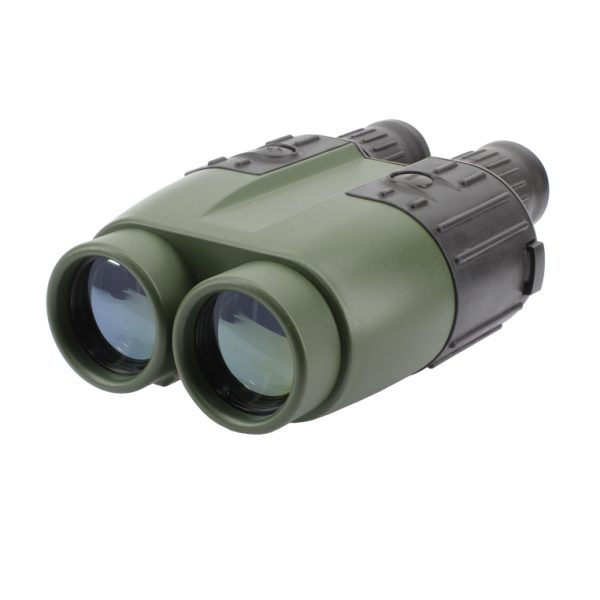

The LRB 6000CI medium range laser rangefinder binoculars combine uncompromised 7×50 optics with advanced data processing algorithms. The rangefinder instantly measures distance up to 6,000 meters (output display in yards also), accurate azimuth and inclination via an in-built digital magnetic compass, and speed using the highly accurate time-of-flight delay method. LRB 6000CI also features RS-232 interface that enables immediate data acquisition by computers, external GPS receivers and various ballistic computers.

A gating algorithm implemented in LRB 6000CI dramatically improves reliability of measurement in unfavourable measurement conditions (e.g. rain, snow, bushes, wires, etc). Low power-consumption (one battery lasts for more than 5000 shots), ergonomic rubber-armoured body, long eye relief, simple two-button operation, and wide objective lenses make observation and distance measurement with these binoculars accurate and comfortable.

6,000 metre range
Distance, Azimuth and Elevation measurements
Optics
Magnification (x) 7
Objective lens diameter (mm) 50
Field of view (°) 5
Eye relief (mm) 18
Diopter adjustment range ±4
Interpupillary distance (mm) 58 – 72
Rangefinder

Eye safety

Class 1, eye-safe

Wavelength (nm)

905

Measuring distance range (m)*

1 – 6,000

Azimuth measurement accuracy (°/mils) ±1 / 17

Inclination measurement accuracy (°/mils)

±1 / 17

Speed detection

First/last target logic

Scan mode
Display

Meters/yards display

Computer output, type

 Bi-directional RS-232

Last 10 readings recall

Reticle pattern selection

Low battery indicator

Mechanics, Electronics & Environmental

Dimensions (mm)

210x150x80

Weight without batteries (g)

1,300

Power Supply

9V Non-Magnetic

Battery life (# of measurements)

5,000

Operating temperature range (°C)

-25 to +50

Storage temperature range (°C) -30 to +55
Waterproofing MIL-STD-810G

*2.3×2.3m NATO standard target
