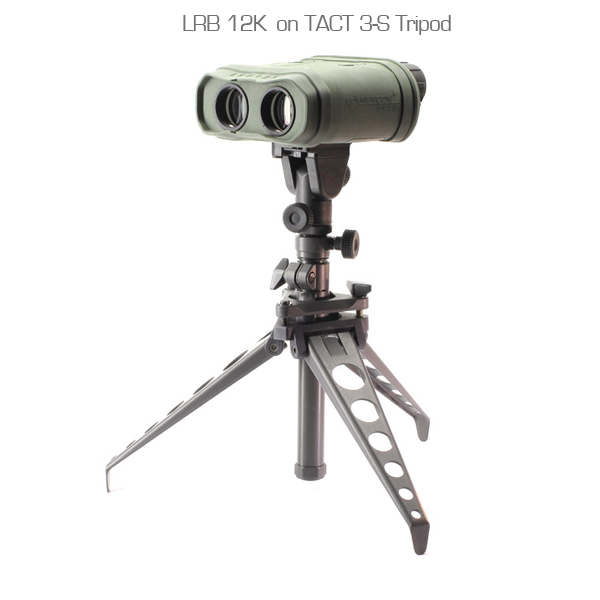

12k_on_tripodLRB 12K reticle

LRB 12K

The LRB 12K is built to outperform any handheld laser rangefinder binocular available today. Packing a virtually endless set of performance features into a MIL-SPEC form factor, the LRB 12K can handle anything professional operators can throw its way.

A 12,000 metre (NATO target) measuring range, built-in digital magnetic compass, built-in GPS receiver, and a crystal-clear LED display are combined into an invaluable force multiplier.

The LRB 12K requires virtually no maintenance and very little operational training. Through USB and RS-232 interfaces, the LRB 12K can be operated remotely, have its stored data exported, and communicate with external GPS systems and ballistic computers. Users can now communicate with the LRB 12K using Newcon Optik’s new NC Cronus app.



This device is compatible with:

Android™         NC Cronus™



12,000 metre measuring range
Built-in digital magnetic compass
USB and RS232 interfaces
Android(TM) Compatible
Easy to use
Optics
Magnification (x) 7
Objective lens diameter (mm) 42
Field of view (°) 6
Eye relief (mm) 20
Diopter adjustment range ±5
Interpupillary distance (mm) 58 – 72
Rangefinder

Eye safety

Class 1, eye-safe

Wavelength (nm)

1550

Measuring range capability (m)

10 – 25,000

Measuring distance range (m)

10 – 12,000

Distance measurement accuracy (m)

±1

Azimuth measurement accuracy (°) ±1

Inclination measurement accuracy (°)

±0.5

Speed detection

Yes

First/last target logic

Yes

Gating capability

Yes

Gating step (m)

≥100

Scan mode Yes
Peripheral compatibility PLGR, Bal Comp, PC, Android™, BT (Optional)
Distance between objects Yes
Horizontal distance between objects Yes
Azimuth difference between objects Yes
Inclination difference between two objects Yes
Height difference between objects Yes
User GPS coordinates Yes
Target GPS coordinates Yes
Display

Meters/yards display

Yes

Computer output, type

RS-232, USB, NMEA

Last 10 readings recall Yes

Reticle pattern selection

Yes

Low battery indicator

Yes

Mechanics, Electronics & Environmental

Dimensions (mm)

210x178x85

Weight without batteries (g)

1,580

Tripod mountable Yes

Power Supply

2CR5 non-magnetic

Battery life (# of measurements)

5,000

Operating temperature range (°C)

-40 to +60

Storage temperature range (°C) -40 to +60
Waterproofing MIL-STD-810G
