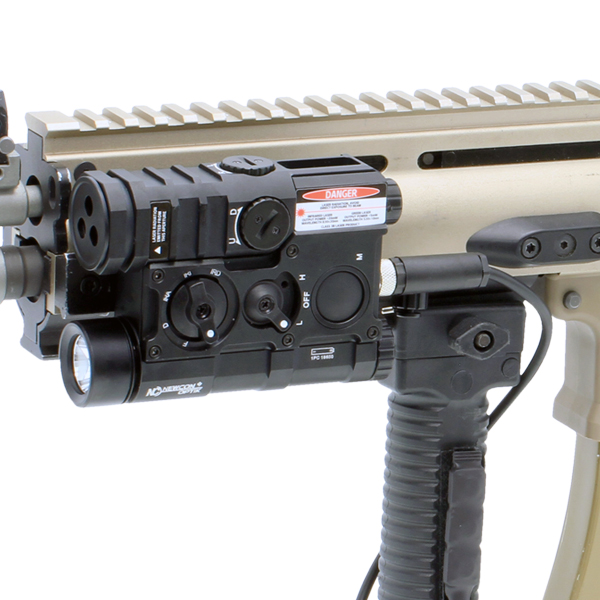

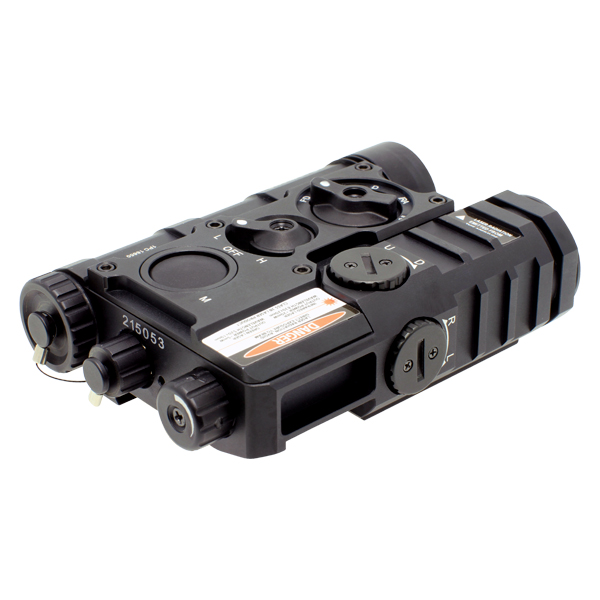

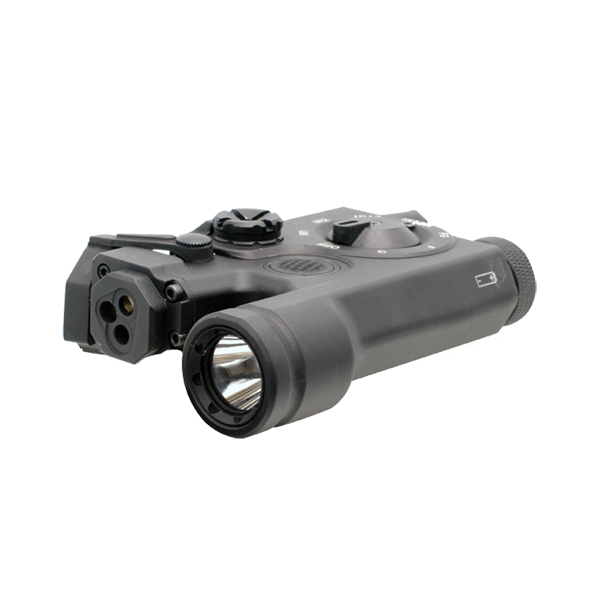

LAM 4G

The LAM 4G is an all-in-one aiming and illumination system for rifles and machine guns. A 4-channel device, the LAM 4G includes a visible green laser and LED flashlight, IR aiming laser and IR illuminator.

Fully MILSPEC
Multi-functional operation via push-button or remote switch
300 lumen CREE LED
2km range (IR aimer/illuminator)
Over 8-hour operation on a single battery
Low power mode for training/domestic operations
Extremely compact & lightweight (285g)

Visible Laser Aimer

Eye safety

IIIb

Distance, day, low/high (m)

150 / 500

Beam divergence, FWHM (mrad)

1.2

Spot size @ 100m (mm)

60

Wavelength (nm)

530 ±20

Laser colour

Green

Infrared Laser Aimer

Eye safety

IIIb

Distance, low / high (m)

1,000

Beam divergence, FWHM (mrad)

1.2

Wavelength (nm)

830 ±20

Flashlight

Bulb

CREE, V6HD

Light output (lumens)

300

Infrared Laser Illuminator

Eye safety

IIIb

Distance, low / high (m)

200 / 2,000

Beam divergence, FWHM (mrad)

1.3 – 60

Wavelength (nm)

830 ±20

Ballistics

Windage adjustment step (mrad)

0.5

Elevation adjustment step (mrad)

0.5

Retention after 1,000 shots (mrad)

1

Mechanics, Electronics & Environmental

Dimensions (mm)

116x90x34

Weight without batteries (g)

285

Shock resistance (G)

300

Quick release

Yes

Battery type

CR 123

Battery life, high / low (hours)

8 / 16

Operating temperature range (°C)

-40 to +60

Waterproofing

IP67
