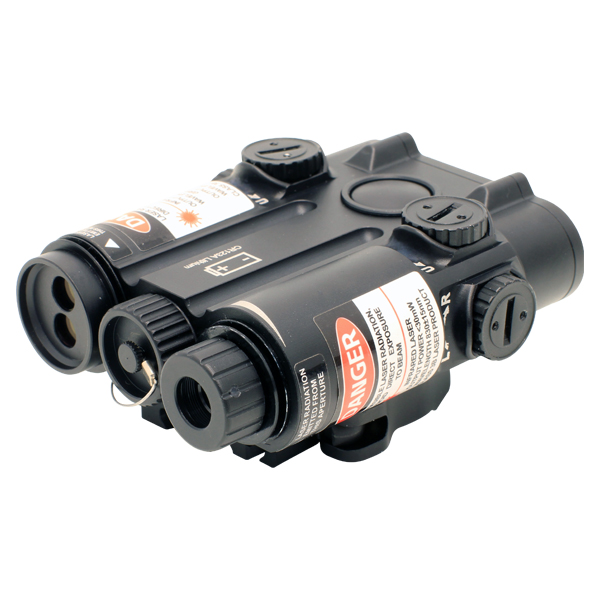

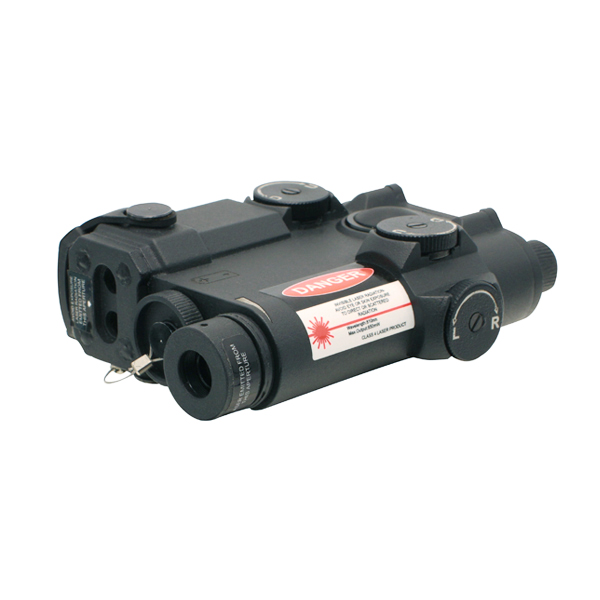

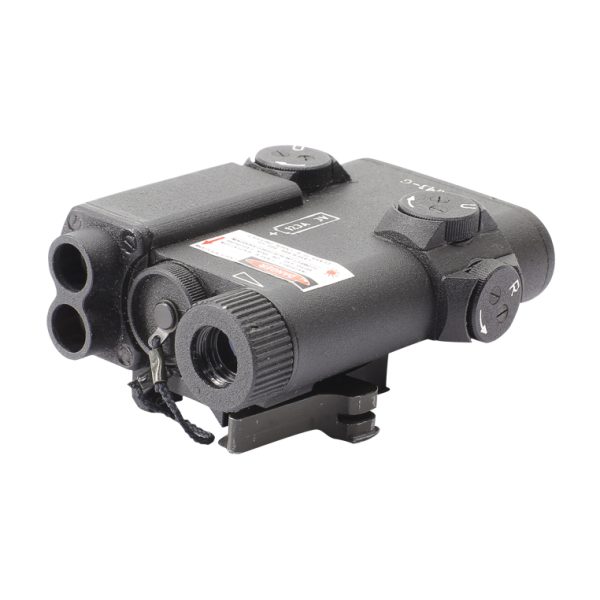

LAM 3G

The LAM 3G is a multi-laser aiming system equipped with collimated visible and IR lasers designed to reach out to 2,000m. Built-in IR illuminator and IR aiming laser provide covert tactical precision when paired with night vision devices. Features an adjustable IR illuminator for better illumination at longer ranges, dual activation switches and high/low power modes ensures appropriate laser intensity during training exercises. With a quick-release M1913 mount, the LAM 3G is among the lightest aimers in its class and is the right choice for professional operators demanding unrivaled performance and reliability. The unit is constructed of high-strength aluminum and can withstand rigors of tactical life on virtually any weapon platform.

Visible and IR laser modes

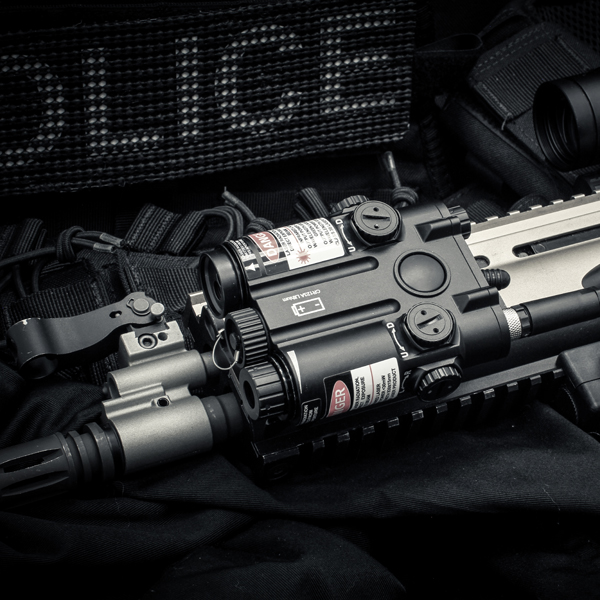

Mountable on various assault rifles
Extremely rugged design
Wired pressure switch
MIL-STD-810G

Visible Laser Aimer

Eye safety

IIIb

Distance, day, low/high (m)

150 / 500

Beam divergence, FWHM (mrad)

0.5

Spot size @ 100m (mm)

50

Wavelength (nm)

532 ±10

Laser colour

Green

Infrared Laser Aimer

Eye safety

IIIb

Distance, low / high (m)

200 / 2,000

Beam divergence, FWHM (mrad)

0.5

Spot size @ 100m (mm)

50

Wavelength (nm)

830 ±15

Infrared Laser Illuminator

Eye safety

IIIb

Distance, low / high (m)

200 / 2,000

Beam divergence, FWHM (mrad)

1 – 105

Wavelength (nm)

830 ±15

Ballistics

Windage adjustment step (mrad)

0.5

Windage adjustment range (mrad)

40

Elevation adjustment step (mrad)

0.5

Elevation adjustment range (mrad)

40

Retention after 1,000 shots (mrad)

1

Mechanics, Electronics & Environmental

Dimensions (mm)

100x73x41

Weight without batteries (g)

300

Shock resistance (G)

300

Quick release

Yes

Battery type

CR 123

Battery life, high / low (hours)

8 / 16

Operating temperature range (°C)

-10 to +50

Storage temperature range (°C)

-40 to +60

Waterproofing

IP67
