MOD 25HFLC

This high-frequency laser rangefinder module enables highly accurate range acquisition of low reflection targets at ranges of up to 30 kilometres. The module can be effectively used in marine navigation, long-range reconnaissance, naval and coast guard patrol, and other professional applications requiring highly accurate, long distance measurements.

Liquid cooling is no longer required for the MOD 25HFLC, which enables higher-frequency data acquisition up to 10Hz with no cooling time required. This gives the system the smallest footprint and weight profile.

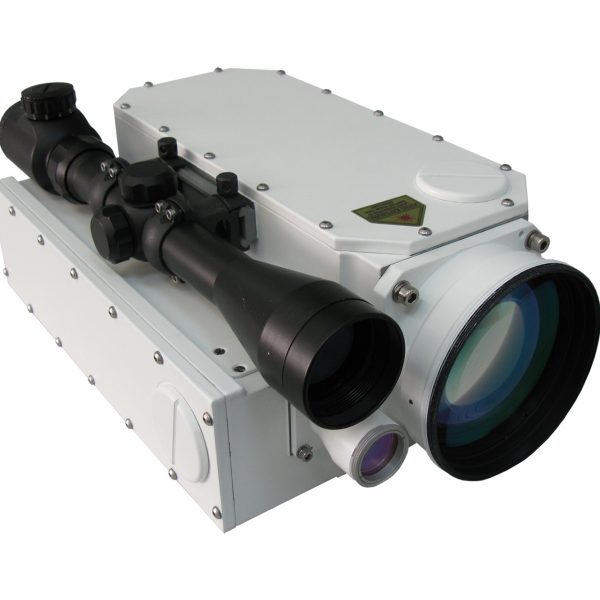

The unit can be integrated with other systems and communicate via RS-422. In designing this module for precision target acquisition, special attention was given to the ability to boresight the units with a pre-designed optical platform. A removable day sight with precise alignment to the laser is provided to enable quick boresighting and visual integration with other observation systems.

Range of up to 30,000 m
Diode-pumped solid state laser
High frequency operation
Continuous operation at 10Hz rate
Simultaneously detect 3 targets
Wide operating temperature range with no degradation of range performance

Rangefinder

Eye safety

Class IIIb

Wavelength (nm)

1570

Pulse radiation energy (mJ)

≥20

Beam divergence (mrad)

0.7±0.1

Laser type

Nd: YAG diode pumped, OPO

Distance measurement range, maximum (m)

30,000

Distance measurement accuracy (m)

±1

Azimuth measurement accuracy (°)

na

Inclination measurement accuracy (°)

na

Range resolution (m)

15

Pulse Repetition Rate

1-20 Hz

1-10 Hz, continuous

11-20 Hz, duty cycle 4:1

Simultaneously detected targets

3

First/last target logic

Gating capability

Mechanics, Electronics & Environmental

Dimensions (mm)

322x196x113

Weight (g)

5.5

Cooling

TEC, no liquid cooling

Interface

RS-422

Power source

22 – 32 VDC

Operating temperature range (°C)

-30 to +55

Storage temperature range (°C)

-40 to +60

Enclosure

IP65, has integrated desiccators
