NVS 15-3AG

The NVS 15-3AG auto-gated dual tube night vision goggle has been proven in deployments in conflict zones and by peacekeepers around the world. The model utilizes two advanced Gen 3 image intensifier tubes, with minimum, exportable FOM >1600 and an auto-gated power supply for optimal performace in all light conditions.

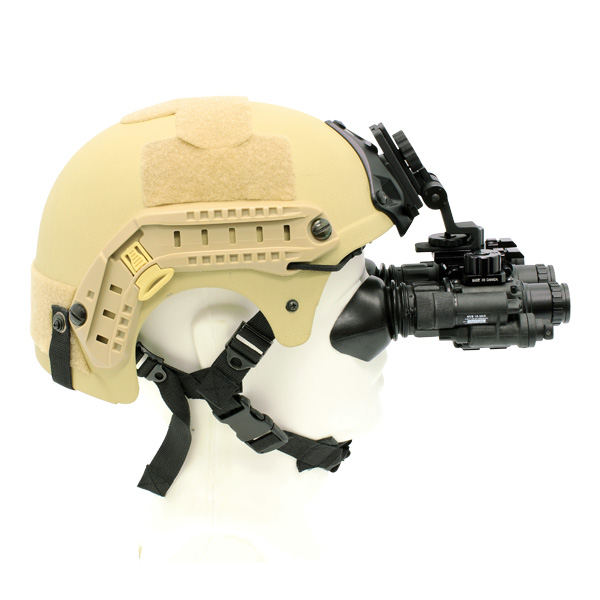

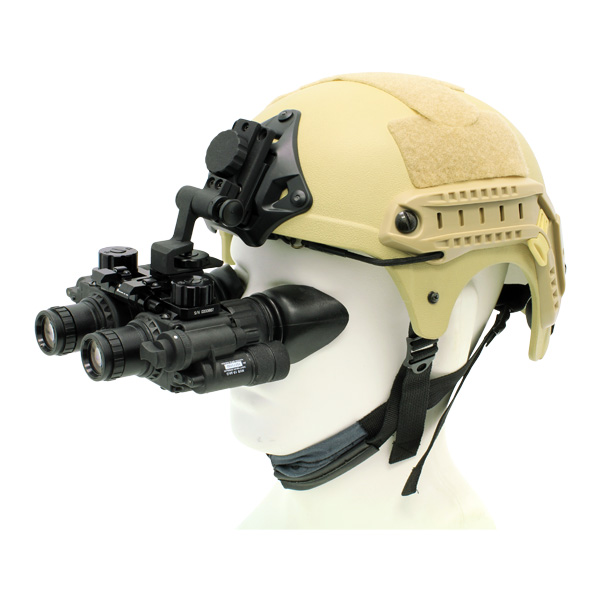

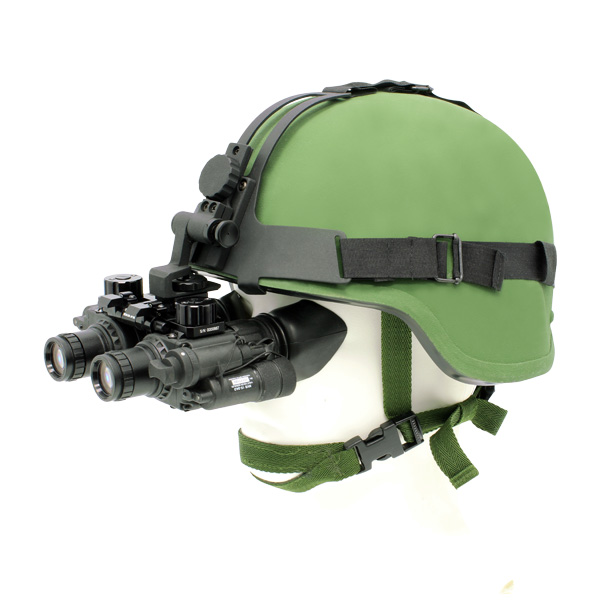

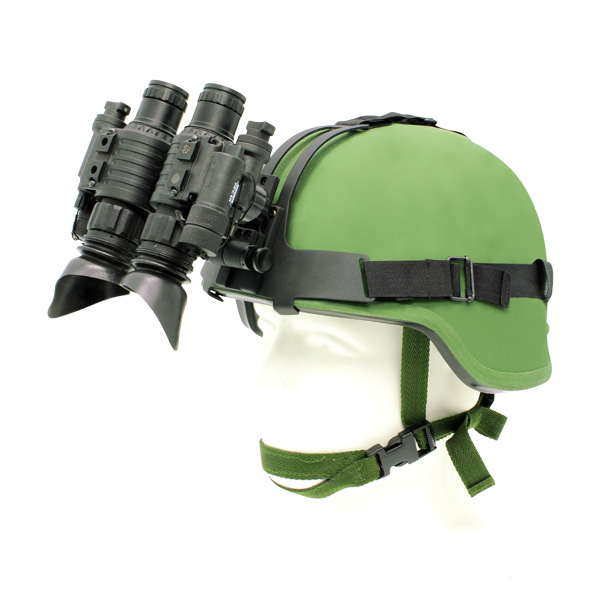

The device has a manual gain control system, built-in IR illuminator, auto shutoff mechanism and is fully MILSPEC. The unit provides users with full depth perception and is ideal for vehicle operation and any other dark environment task requiring acute situational awareness. It also allows for the detachment of the left or right eye device while the proprietary bridge mount provides for interpupillary and other fine adjustments. The NVS 15-3AG can be handheld, head or helmet mounted, while each individual monocular module can be mounted on a variety of weapon systems.

Battle ready
Superior optics
Easy to use
Manual Gain Adjustment

IIT

Generation

3

Photocathode material

GaAs

IIT resolution, minimum (lp/mm)

64

Signal to noise ratio, minimum

25

Auto-gating

Yes

Optics

Magnification (x)

1 (3x option available)

Field of view (°)

40

Objective F#

1.2

Objective focal length (mm)

25

Focus range (m)

0.25 – ∞

Eye relief (mm)

25

Diopter adjustment range

-6 to +5

Mechanics, Electronics & Environmental

Dimensions (mm)

114x150x66

Weight without batteries (g)

676

Interpupillary distance (mm)

52 – 74

Built-in IR illuminator

Yes

Battery type

2x AA or 2xCR123

Battery life (hours)

40

Startup time (seconds)

<2

Operating temperature range (°C)

-50 to +55

Storage temperature range (°C)

-50 to +70

Humidity

up to 95% non-condensing

 Waterproofing standard MIL-STD-810G
Waterproofing GCS upgrade  20m, 30 minutes
