Thermal Imagers allow one to see the smallest gradation in surrounding objects’ temperatures regardless of external light conditions. With the help of Newcon Optik Thermal Imagers, you can find a human under snow avalanche, notice a foe behind a bush, detect bad contact in a high-voltage line, and do much more.
BINOCULARS
-

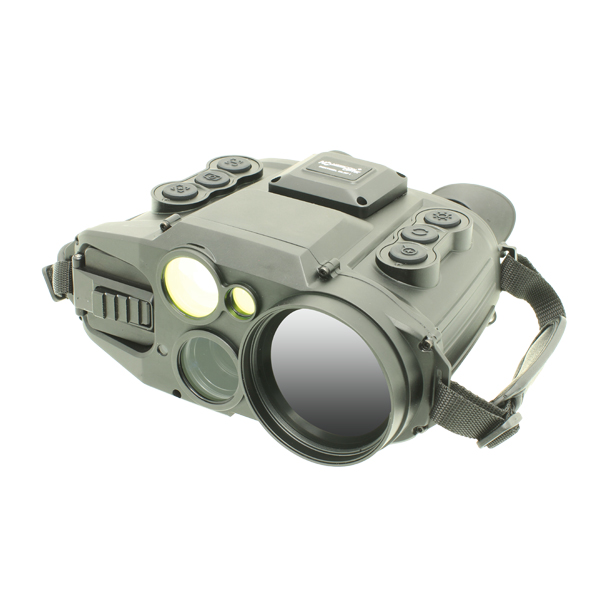

SENTINEL MLRF
The SENTINEL MLRF is the most effective handheld multi-functional thermal laser rangefinder binocular available. It serves a wide variety of tactical, law enforcement, border security and special forces applications. SENTINEL MLRF features various image observation modes, ultra-long-range observation, precise target positioning and guidance with eye-safe laser rangefinder and digital magnetic compass, image capture, video recording, and real-time data transmission, and efficiently aids users in conducting on-site investigations, target searches, and information feedback tasks. Data is displayed in the field of view and can be exported to a variety of peripheral devices.
-
SENTINEL SMLRF
The SENTINEL SMLRF is a mission-critical, multi-functional thermal binocular system engineered for elite tactical units operating in complex and high-risk environments. Equipped with high-resolution uncooled LWIR and SWIR sensors, and an integrated eye-safe laser rangefinder rated for distances up to 10,000 meters, the SENTINEL SMLRF delivers unmatched long-range detection and engagement capabilities. It enables operators to identify human targets at up to 2.3 km and vehicles at 6.3 km—through smoke, fog, or camouflage—ensuring 24/7 operational effectiveness.
The system integrates GPS positioning, a digital magnetic compass, and multiple image fusion modes to provide real-time, in-view data on target location, azimuth, and inclination. Onboard video and photo recording, silent operation, and versatile connectivity options enhance mission documentation and communication.
Built to MIL-STD 810 standards, it operates in extreme conditions and withstands rugged use in the field. Compact, reliable, and highly mobile, the SENTINEL SMLRF delivers the advanced situational awareness and precision targeting essential to today’s most demanding tactical missions.
-
SENTINEL UMLRF
The SENTINEL UMLRF is the most effective cooled handheld multi-functional thermal laser rangefinder binocular available. It serves a wide variety of tactical, law enforcement, border security and special forces applications. SENTINEL UMLRF binoculars use a high-resolution cooled thermal sensor to perceive differences in the thermal signature of objects within the field of view. The unit can detect objects at remote distances 24 hours a day, through smoke, fog or camouflage. The unit’s eye-safe laser rangefinder and digital magnetic compass instantly measure distance, azimuth and inclination of far-off targets. Data is displayed inside the field of view and can be exported via the computer output to a variety of peripheral devices.
-
SENTINEL LRF (640)
SENTINEL LRF (640) – Military-Grade Long-Range Thermal Binocular
The SENTINEL LRF (640) is a rugged, mission-ready thermal imaging binocular engineered for military operations, including reconnaissance, target acquisition, surveillance, and force protection.Designed to perform in the most demanding environments, it offers:
– High-resolution uncooled thermal sensor for reliable detection of personnel, vehicles, and equipment through smoke, fog, dust, and camouflage—day or night.
– Integrated eye-safe laser rangefinder with a standard range o f 5,000 meters and an optional extended range of up to 10,000 meters for precise target distance measurement across vast
operational zones.
– Digital magnetic compass (DMC) for accurate azimuth and inclination data—essential for target location, fire correction, and coordinated mission execution.
– All-weather, 24/7 capability, enabling consistent performance in low-visibility or denied environments.The SENTINEL LRF (640) enhances situational awareness and opera tional effectiveness, providing armed forces with a force-multiplying advantage in tactical and strategic scenarios.
-
SENTINEL M (640)
The SENTINEL M (640) utilizes a large diameter Germanium lens to extend its observation range beyond 2,500m. The SENTINEL M (640) is an advanced thermal imaging binocular with a wide variety of tactical, law enforcement, border security and special forces applications. The SENTINEL M (640) utilizes a high-resolution uncooled thermal sensor to perceive differences in the thermal signature of objects within the field of view.
This device can detect objects at remote distances 24 hours a day, through smoke, fog or camouflage. This device does not produce any audible sounds while in operation.
ACCESSORIES
-
NC SST3-3S Tripod
The NC SST3-3S Tripod Model Tactical Tripod was selected by the US Army and US SOCOM for use in their ground target location systems. The NC SST3-3S Tripod is “amagnetic” and will not adversely influence any sensor device equipped with a digital magnetic compass. The NC SST3-3S Tripod is a rugged combat proven field tripod platform with a terrain-leveling gimbal that allows the user to adjust the position of the optical device for uneven terrain.
This tripod is for use with a wide range of high magnification field optics, laser range finders, thermal cameras and night vision devices. The NC SST3-3S Tripod weighs approximately three pounds, has a versatile tripod head with a detachable base plate, multi-section mast, and a wide stable tripod base. The mast can be detached from the tripod base and used with an internal stored ground spike as a monopod. Constructed of high-strength, lightweight, aerospace-grade aluminum alloys, the NC SST3-3S Tripod deploys quietly and provides rock solid stability. This field tripod design allows shooters to use field optics comfortably from the prone to sitting positions.
