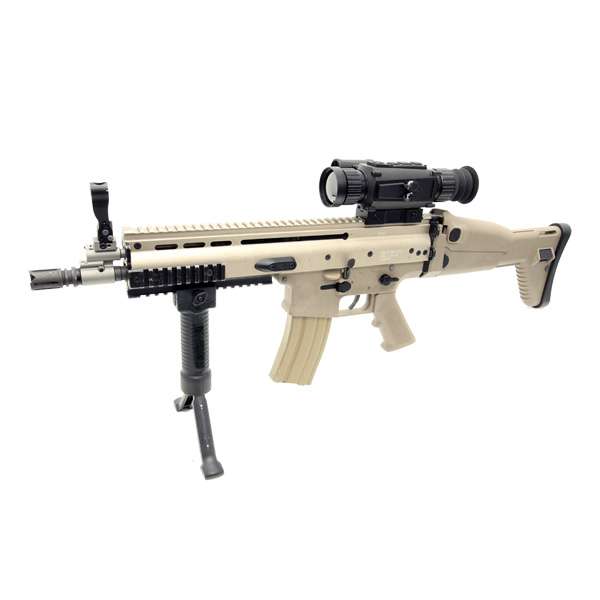

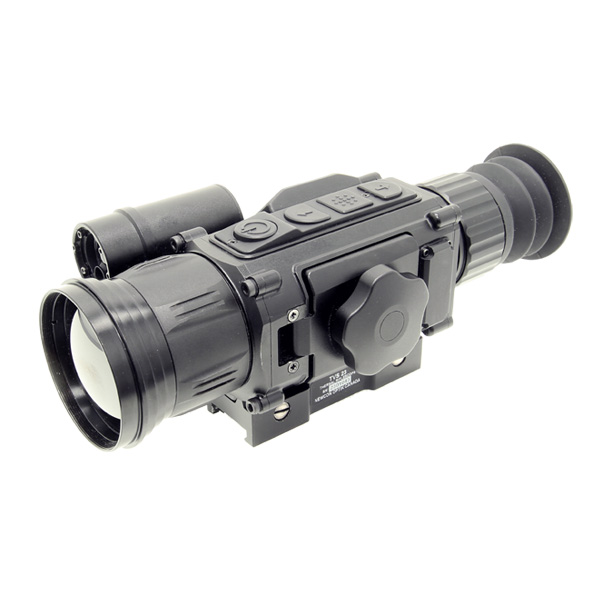

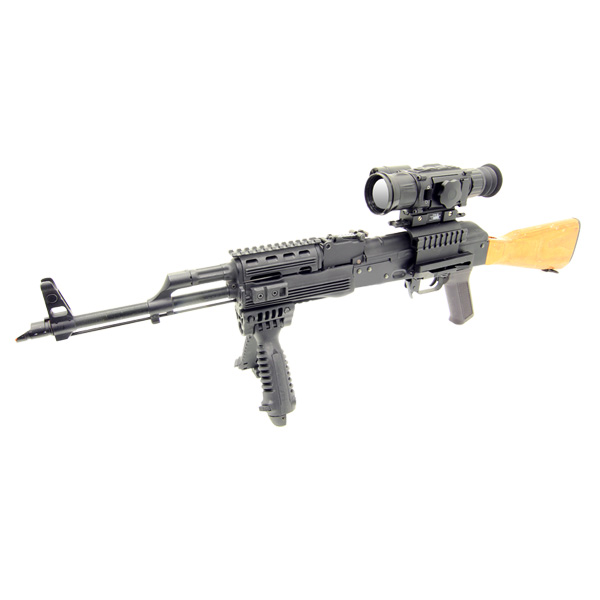

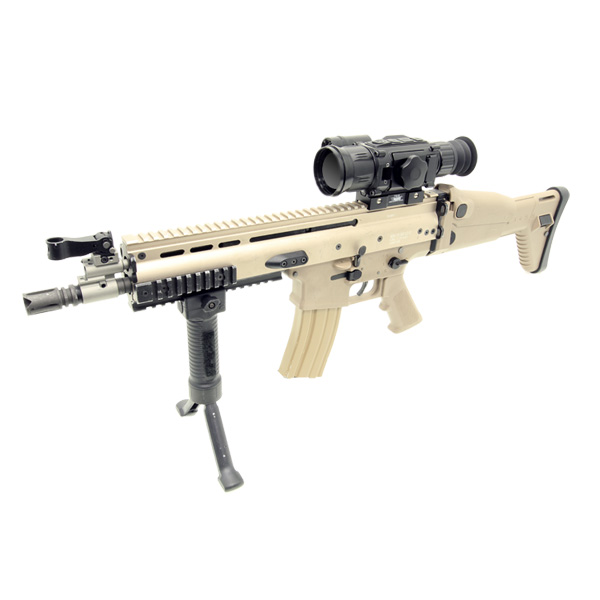

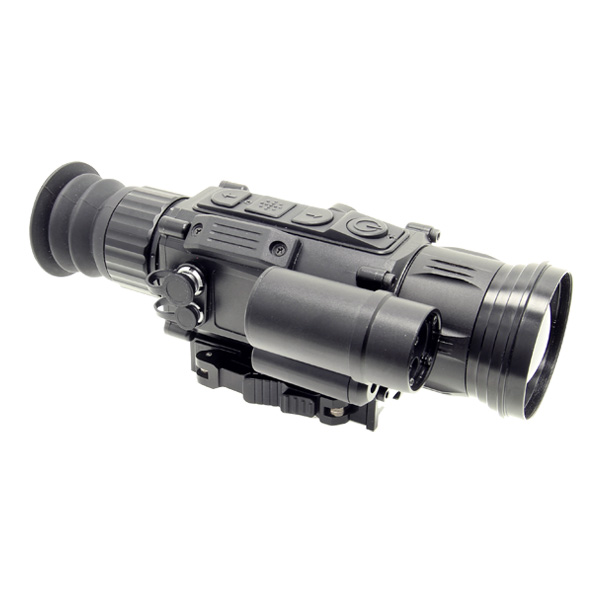

The TVS 23 thermal riflescope is designed to act as a force multiplier in the most demanding situations faced by border patrol, law enforcement, tactical teams and special operations forces. The TVS 23 functions effectively in CQB, medium and long range target engagement applications. Advanced built-in ballistics software allows for accurate firing on virtually any weapon platform, while a video output port and internal storage capability enable the capture of video and still images.
|
Accurate focus adjustment mechanism |
|
High resolution sensor |
|
2x, 4x digital zoom |
|
Superb image quality |
|

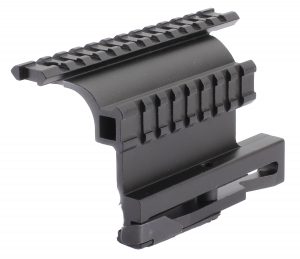

Supplied with MIL-STD-1913 QR Picatinny mount |
|
Mil-spec housing, waterproof to 1 meter |
|
Low battery indicator |
|
Variable reticles and color schemes |
|
Compact and lightweight design |
|
Optional video and picture recording |
|
Sensor |
|
|
Surface treatment |
Anticorrosion coating |
|
Material |
Aircraft grad aluminum |
| Spectrum | 8-14um |
| Detector | 640×512 |
|
Sensor type |
VOX |
|
Pitch |
12um |
|
NETD |
≤35mk (normal temperature) |
| DRI (m)
Human Tank |
1563/391/195 4792/1198/599 |
|
Frame rate |
50Hz |
|
Zoom |
1x,2x,4x |
|
Infrared lens |
50mm |
| Field of view | 8.7°×7° |
| Polarity | White hot, black hot, sepia, red hot, green hot |
| Reticle | YES, Customized |
| Brightness | Auto/manual |
| Contrast | Auto/manual |
| DDE technology for contrast | 0 ~ 4 |
| Video storage | In-built 64G, for 6hours video Or 20000 images |
| OLED | 0.4-inch 1280×1024 OLED color |
|
Laser pointing |
505nm |
|
LRF |
Side rail attachment (laser crosshairs on the image) |
|
WIFI |
Yes |
|
GPS |
GPS +-3M |
|
Compass |
Optional |
|
Battery |
2xCR123 |
|
Pupil Distance |
30mm |
|
Diopter |
5SD |
|
Battery life |
≥4 hours (normal temperature) |
|
Interface |
9-pin LEMO interface Power, video, rs232, USB |
| Dimensions | 220 x 90 x 77 mm |
|
Weight with batteries |
700g |
|
Working temperature |
-40° ~ 50° |
|
Storage temperature |
-50° ~ 60° |
