| 20x to 60x zoom |
| Clear image at high magnification |
| Rugged design |
| Mil-Dot reticle |

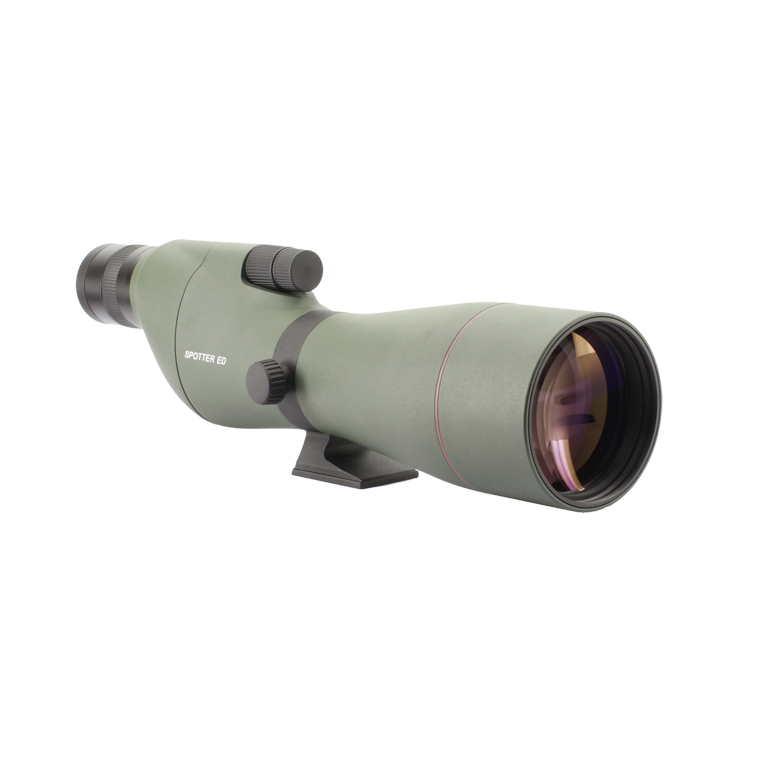

Whether you are at the range or in the field, SPOTTER ED’s extra low dispersion (ED) glass and 20-60×85 optics bring your target into clear, consistently sharp, high-contrast focus, at distances that overwhelm lesser optics. A straight eyepiece position permits a lower scope-mounting height, and allows for better stability and user comfort. The SPOTTER ED is nitrogen filled, waterproof, dustproof, and shock-resistant. All Newcon Optik SPOTTER series spotting scopes feature powerful lenses, and come standard with a durable weather case.
| 20x to 60x zoom |
| Clear image at high magnification |
| Rugged design |
| Mil-Dot reticle |
|
Optics |
|
|
Minimum Magnification (x) |
20 |
|
Maximum Magnification (x) |
60 |
|
Objective lens diameter (mm) |
85 |
|
Focus range (m) |
7 – ∞ |
|
Exit pupil (mm) (min / max mag) |
4.25 – 1.4 |
|
Eye relief (mm) (min / max mag) |
20 – 18 |
|
Field of view @ 1,000m (m) (min / max mag) |
38 / 22 |
|
Diopter adjustment range |
±5 |
|
Twilight factor (min / max mag) |
41.2 / 71.4 |
|
Relative brightness (min / max mag) |
18 / 2 |
|
Reticle type |
Mil-Dot |
|
Mechanics, Electronics & Environmental |
|
|
Weight (g) |
1,980 |
|
Dimensions (mm) |
450x100x130 |
|
Eye piece type |
Straight |
|
Digital Camera Compatible |
Yes |
|
Operating temperature range (°C) |
-30 to +60 |
|
Storage temperature range (°C) |
-40 to +65 |
| Humidity | 90% |
|
Nitrogen purged |
Yes |
|
Waterproofing |
IP67 |
