| Battle ready |
| 4x magnification |
| Easy to operate |
| MIL-STD-1913 mount system |

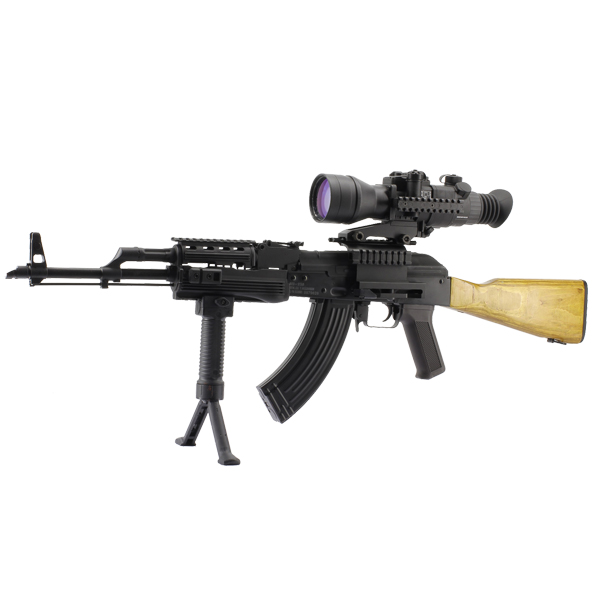

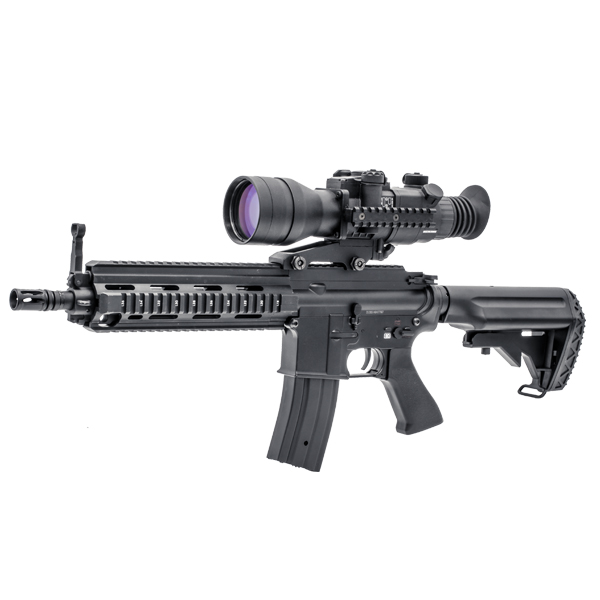

The DN 463 is a military-grade night vision riflescope of choice for tactical operators requiring a night-time CQB and/or medium-range target engagement capability. Fully weatherproof with a nitrogen-filled optical channel, the DN 463 can be used in virtually any combat environment.
The unit’s Gen 3 image intensifier tube features automatic brightness control, bright source protection and minimum exportable FOM >1600. The wide-aperture lens provides a sharp and clear picture while the high light gain allows operation even in situations of critically low illumination.The DN 463 is equipped with a Mil-Dot reticle and a voltage stabilization system that eliminates reticle shift even with an almost fully discharged battery.
| Battle ready |
| 4x magnification |
| Easy to operate |
| MIL-STD-1913 mount system |
| IIT | |
|
Generation |
3 |
|
Photocathode material |
GaAs |
|
IIT resolution, minimum (lp/mm) |
64 |
|
Signal to noise ratio, minimum |
25 |
| Auto-gating | Optional |
| Auto-gating with black & white phosphor | Optional |
| Optics | |
|
Magnification (x) |
4 |
|
Field of view (°) |
10 |
|
Objective F# |
1.68 |
|
Objective focal length (mm) |
101.5 |
|
Focus range (m) |
10 to ∞ |
|
Eye relief (mm) |
50 |
|
Diopter adjustment range |
±3.5 |
| Mechanics, Electronics & Environmental | |
|
Dimensions (mm) |
275x95x105 |
|
Weight (g) |
1,230 |
| Standard mount system | MIL-STD-1913 |
|
Built-in IR illuminator |
Yes (removable) |
|
Battery type |
1x AA or 1x CR123A |
|
Battery life (hours) |
15 with AA, 24 with CR123A |
|
Operating temperature range (°C) |
-30 to +40 |
|
Storage temperature range (°C) |
-40 to +50 |
|
Waterproofing |
IP67 |
| Ballistics | |
| Reticle pattern | Mil-Dot |
| Lit reticle | ✓ |
| Adjustable reticle brightness | ✓ |
| Windage adjustment step (MOA) | 0.42 |
| Elevation adjustment step (MOA) | 0.42 |
