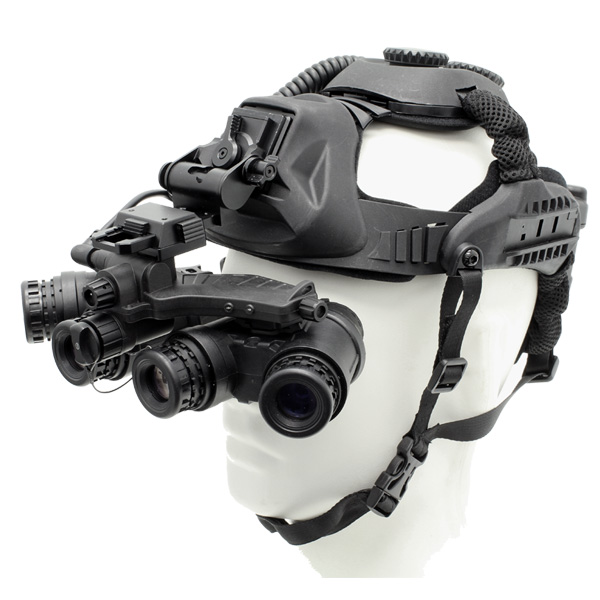

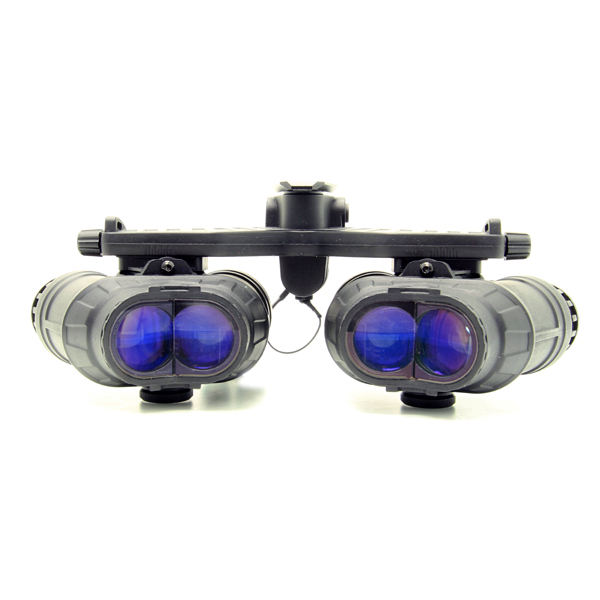

The NVS 18 QUAD Panoramic Night Vision Goggle is a rugged, helmet-mounted four-tube system engineered for operators requiring maximum situational awareness in low-light environments. Its unique four-lens panoramic architecture delivers a 120° field of view, with central tubes providing enhanced depth perception and outward-angled tubes expanding peripheral vision for accelerated detection and engagement.
The system uses Gen 3 image intensifier tubes, green phosphor with a minimum FOM of 2200, ensuring high-resolution, high-contrast imagery under demanding conditions. Each optical pod is modular for optional handheld use, while the adjustable interpupillary distance, optimized weight distribution, and durable ground-ready construction provide stability, comfort, and mission-ready reliability.
| Battle ready |
| Superior optics |
| Easy to use |
|
IMAGE INTENSIFIER TUBE (IIT) |
|
|
Tube Generation |
Gen 3 |
|
Phosphor Type |
P43 (Green) Phosphor |
|
Objective Lens |
F1.18 / 22.5mm |
|
Optical Distortion |
1% Max |
|
Relative Illumination |
>75% |
|
Photocathode Material |
GaAs |
|
Minimum Resolution (lp/mm) |
70 |
|
Minimum Signal-to-Noise Ratio (SNR) |
32 |
|
Gate |
Auto |
|
OPTICAL |
|
|
Magnification |
1x |
|
Field of View (FOV) |
H: 120°±2 V: 50°±2 |
|
Focus Range |
0.25m to Infinity |
|
Exit Pupil Diameter |
8mm |
|
Eye Relief |
30mm |
|
Diopter Adjustment |
+1 to -6 (continuously adjustable) |
|
MECHANICAL, ELECTRICAL, ENVIRONMENTAL |
|
|
Dimensions |
240 x 125 x 83mm |
|
Weight (without batteries) |
788g |
|
IPD Adjustment |
Arbitrary, continuously adjustable |
|
IPD Range |
50 – 85mm |
|
IPD Lock |
Manual |
|
Integrated IR Illuminator |
850nm / 20mW |
|
IR Indicator |
Yes |
|
Low Battery Indicator |
Yes |
|
Onboard Power |
1x CR123A or 1x AA |
|
Remote Battery Pack |
4x CR123A or 4x AA |
| Strobe Battery Pack | 4 IR indicator flashing modes |
|
Battery Life |
30-80 hours |
|
Operating Temperature Range |
-40°C to +55°C |
|
Storage Temperature Range |
-45°C to +60°C |
|
Humidity Range |
5% – 95% |
|
Waterproofing (IP Rating) |
IP67 |
|

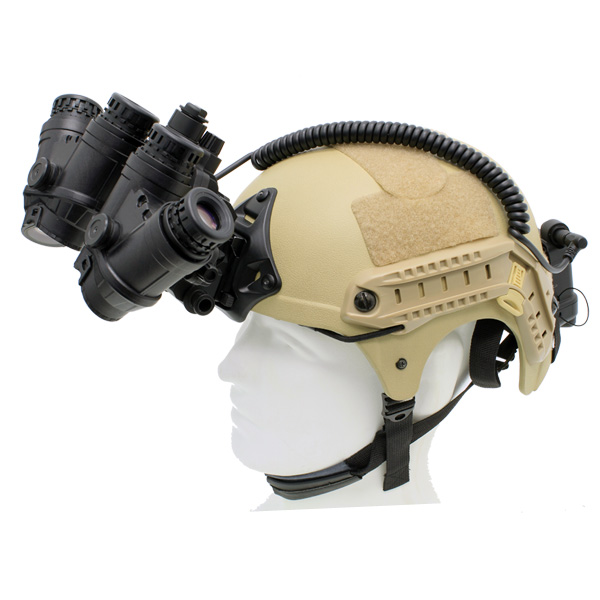

Mounting |
Helmet / Head Harness |
|
Control Modes |
ON / IR / AUTO / OFF |
 |
 |
 |

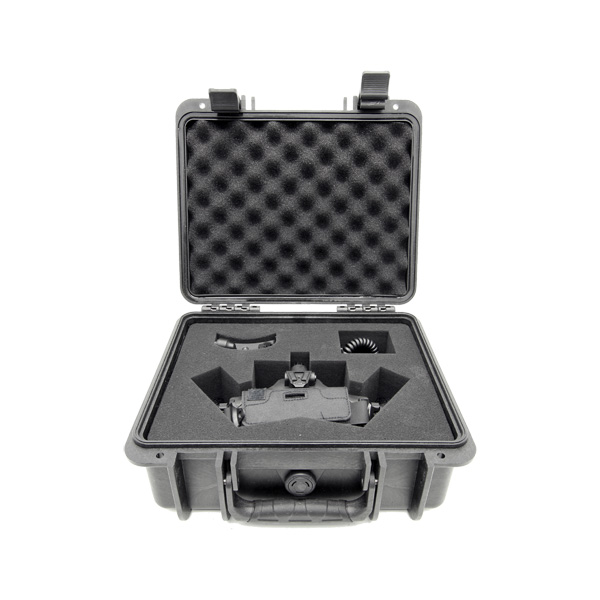

| NVS LP Mount | NVS HMA Mount | NVS 18 Hard Case |
