| Dual-tube Gen 3 white phosphor night vision |
| Auto-gated system with manual gain control |
| Full-depth perception for enhanced situational awareness |
| Built-in IR illuminator |
| Auto shutoff mechanism |
| MIL-SPEC rugged design with FOM >1800 |

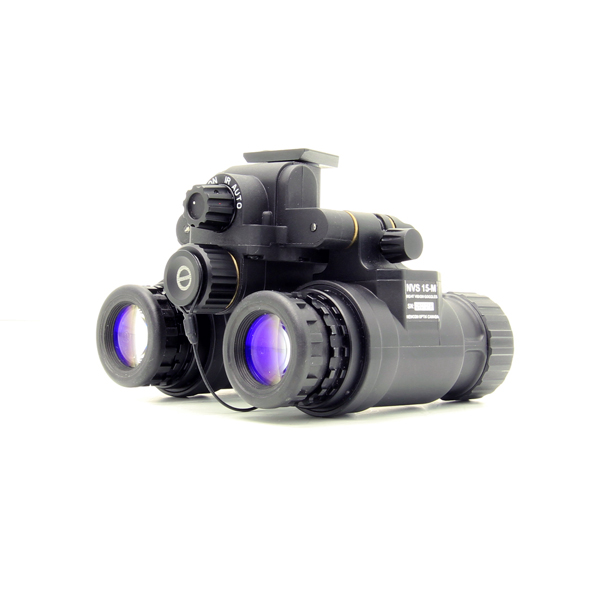

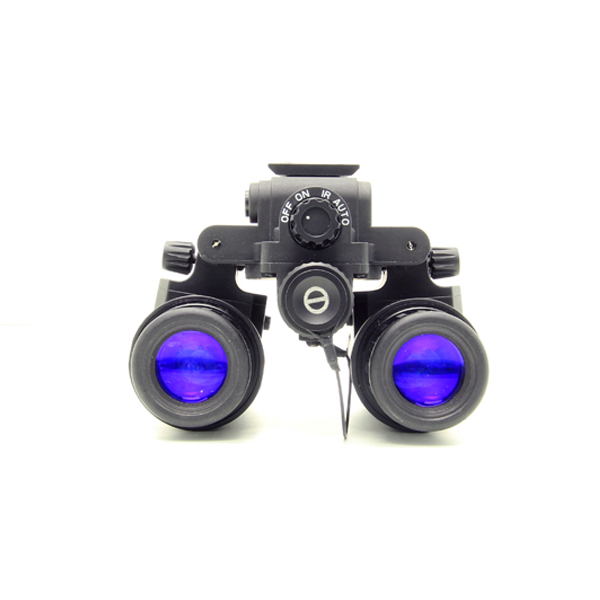

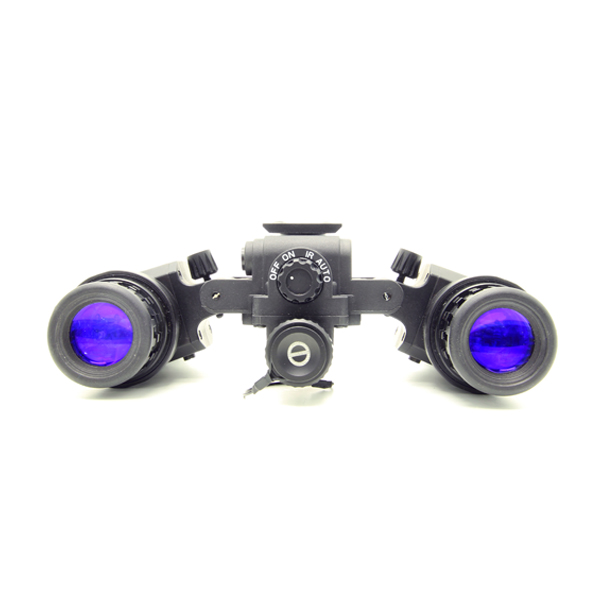

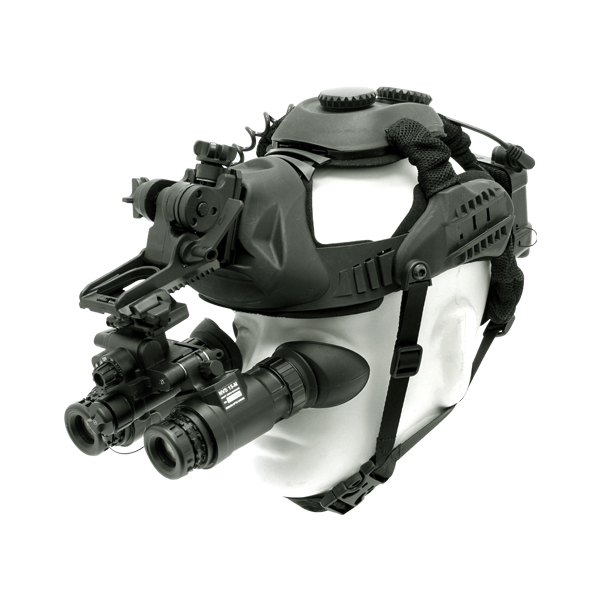

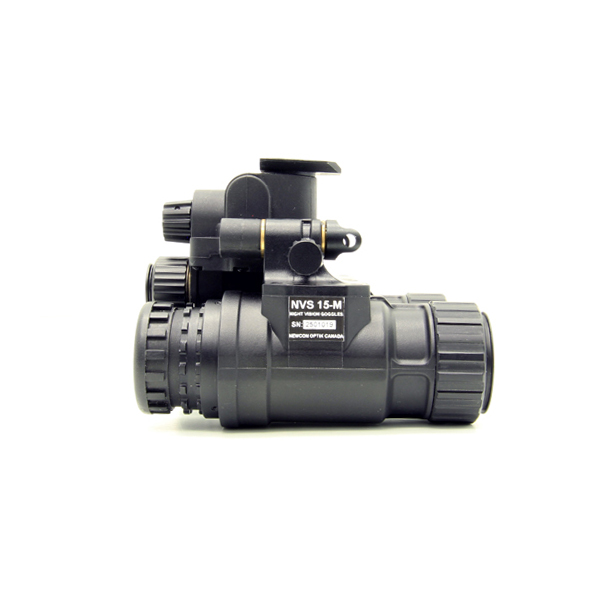

The NVS 15-MAGBW auto-gated night vision goggles have been proven by deployments in conflict zones and by peacekeepers around the world. NVS 15-MAGBW utilizes two advanced black and white Gen 3 image intensifier tubes, is fully auto-gated and has a manual gain control system. It also boasts minimum, exportable FOM >1800, built-in IR illuminator, auto shutoff mechanism, and is fully MIL-SPEC.
The NVS 15-MAGBW provides users with full depth perception, and is ideal for vehicle operation and any other dark-environment task requiring acute situational awareness.
| Dual-tube Gen 3 white phosphor night vision |
| Auto-gated system with manual gain control |
| Full-depth perception for enhanced situational awareness |
| Built-in IR illuminator |
| Auto shutoff mechanism |
| MIL-SPEC rugged design with FOM >1800 |
|
IIT |
|
|
Generation |
3 |
|
Photocathode material |
GaAs |
|
IIT resolution, minimum (lp/mm) |
64 |
|
Signal to noise ratio, minimum |
25 |
|
Auto-gating with black & white phosphor |
Yes |
|
Gain adjustment |
Yes |
|
Optics |
|
|
Magnification (x) |
1 |
|
Field of view (°) |
40±2 / 50±2 |
|
Objective F# |
1.18 |
|
Objective focal length (mm) |
22.5 |
|
Focus range (m) |
0.25 – ∞ |
|
Eye relief (mm) |
30 |
|
Diopter adjustment range |
-6 to +4 |
|
Mechanics, Electronics & Environmental |
|
|
Dimensions (mm) |
115x105x81 |
|
Weight with battery on Board (g) |
516 |
|
Interpupillary distance (mm) |
50 – 80 |
|
Flip up |
Yes |
|
Flip to side |
Yes |
|
Built-in IR illuminator |
Yes |
|
Battery on Board |
1x CR123 |
|

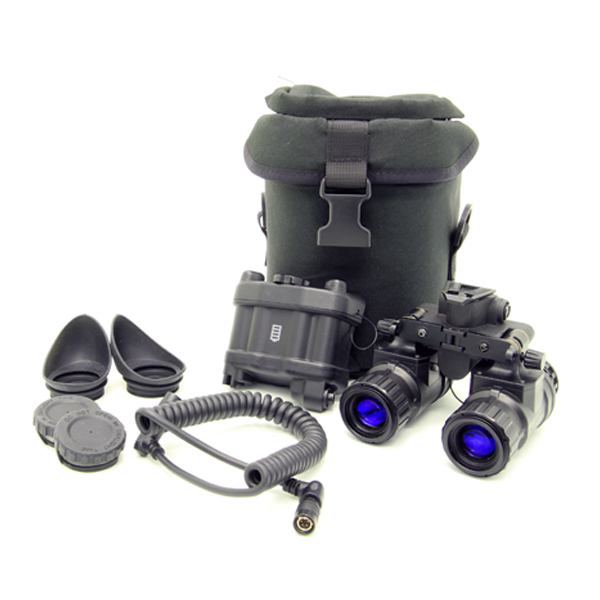

Remote battery Pack |
4x CR123 / 4x AA |
|
Battery life (hours) |
40 |
|
Startup time (seconds) |
<1 |
|
Auto shutoff |
Yes |
|
Operating temperature range (°C) |
-40 to +55 |
|
Storage temperature range (°C) |
-40 to +60 |
|
Humidity |
up to 95% non-condensing |
| Waterproofing, standard | IP67 (1m 30min) |
