| Rapid, accurate target acquisition |
| Tools-free Picatinny mount |
| Rugged design |
| Available with Optional NC BURD |
| Available with Optional ARF Anti-Reflective Filter |

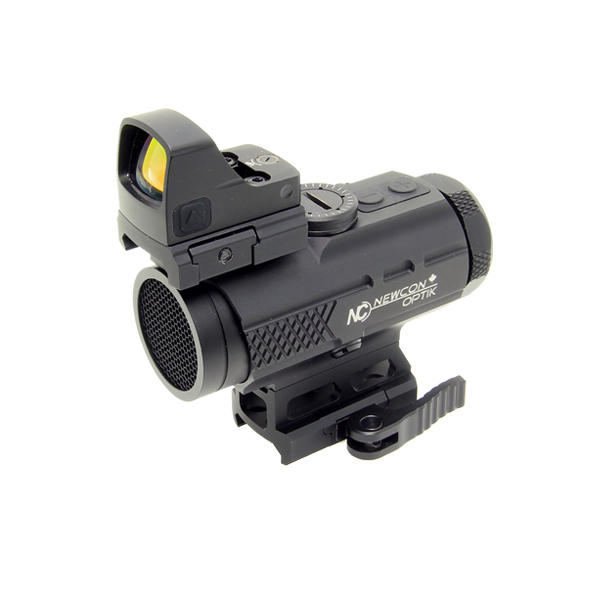

The NC 4×32 is a newly developed holographic sight with a lit reticle. The 4x magnification makes this scope an ideal choice for CQB to medium range encounters. The structurally rugged body is built using special light-weight materials allowing the scope to cope with high recoil. The lit reticle allows the user to operate the scope in various environments. Built-in picatinny mount system allows the operator of the scope to quickly mount it on the weapon.
| Rapid, accurate target acquisition |
| Tools-free Picatinny mount |
| Rugged design |
| Available with Optional NC BURD |
| Available with Optional ARF Anti-Reflective Filter |
|
Optics |
|
|
Maximum magnification (x) |
4 |
|
Objective lens diameter (mm) |
32 |
|
Eye relief (mm) |
67.5 |
|
Exit Pupil Diameter (mm) |
7.5 |
|
Field of view (°) |
5.4 |
|
Diopter adjustment range |
±2.5 |
|
Anti-reflective lenses |
Yes |
|
Ballistic Specifications |
|
|
Reticle pattern |
MiL reticle |
|
Lit reticle |
Yes |
|
Lit reticle colour |
Red / Green |
|
Adjustable reticle brightness |
Yes |
|
Windage adjustment step (MoA) |
0.25 |
|
Elevation adjustment step (MoA) |
0.25 |
|
Mechanics, Electronics & Environmental |
|
|
Dimensions (mm) |
84x44x66 |
|
Weight with battery and mount (g) |
258 |
|
Shock resistance (G) |
500 |
|
Illumination Intensity |
8 levels @ Green & Red |
|
Battery type |
1x CR2032 |
|
Battery life, minimum (hours) |
100 hours @ Minimum stage |
|
Operating temperature range (°C) |
-20 to +40 |
|
Storage temperature range (°C) |
-30 to +50 |
|
Humidity (%) |
95 |
|
Waterproofing |
1m/30min standard
|
|
Night vision/thermal compatible |
Yes |
|
Mount type |
MIL-STD-1913 |
