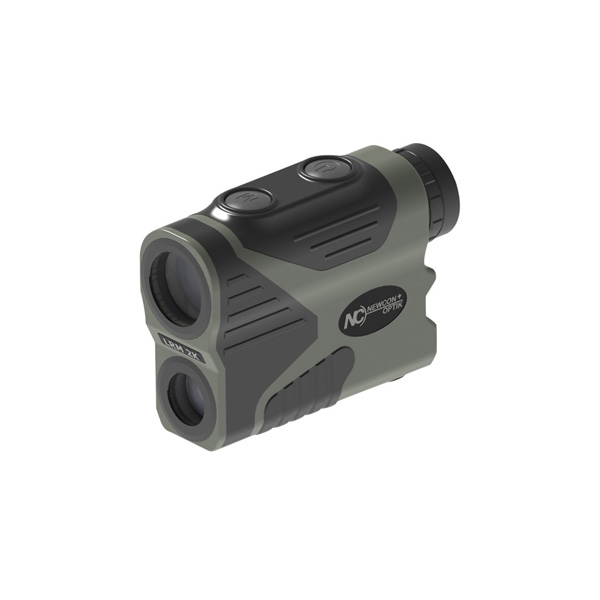

LRM 2K

NSN#: 1240-20-A0X-5255

The state-of-the-art LRM 2K combines excellent 7x optics with the world’s most advanced laser rangefinder technology. Revised approaches in optical, mechanical and electronic engineering allow target acquisition at longer distances with better reliability under a wide range of harsh weather conditions. This model allows observation of distant objects with superb image quality along with accurate distance measurement up to 2,000 m (output display in yards also) and has Bluetooth connectivity and bright TOLED display for round-the-clock operations. Compatible with our new NC Cronus app.

The LRM 2K has a built-in inclinometer to measure the angle to the object. The LRM 2K is waterproof according to IP67 standard. Aim and click— and you know distance and elevation, all with the push of a single button.



This device is compatible with:

Bluetooth™             NC Cronus™



2,000 meter range (2,200 for highly-reflective targets)
Elevation measuring ability
Lightweight design
Easy to use
Optics
Magnification (x) 7
Objective lens diameter (mm) 24
Field of view (°) 7.5
Eye relief (mm) 16
Diopter adjustment range ±5
Rangefinder

Eye safety

Class 1, eye-safe

Wavelength (nm)

905

Measuring distance range (m)*

10 – 2,000

Distance measurement accuracy (m) <500m  ±1m (≥500m ±2m)
Inclination measurement accuracy (°/mils) ±1
Mechanics, Electronics & Environmental

Display type

TOLED

Meters/yards display

Yes

Low battery indicator

Yes

Dimensions (mm)

106 x 76 x 39

Weight without batteries (g)

235

Power supply

1x CR 2 Lithium

Battery life (# of measurements)

5,000

Operating temperature range (°C)

-20 to +50

Storage temperature range (°C)

-30 to +65

Waterproofing

IP 67
