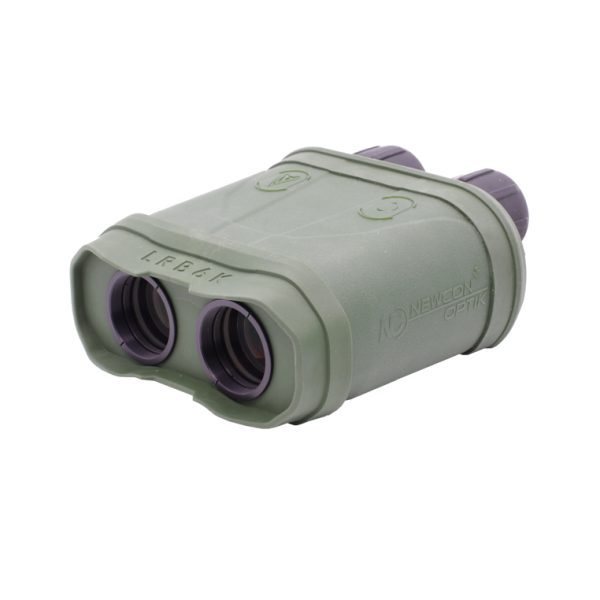

LRB 6K

NSN#: 1240-20-010-6217

The LRB 6K is built to outperform any handheld laser rangefinder binocular available today. Packing a virtually endless set of performance features into a MIL-SPEC form factor, the LRB 6K can handle anything professional operators can throw its way. A 6,000 metre (NATO target) measuring range, built-in digital magnetic compass, and a crystal-clear LED display are combined into an invaluable force multiplier.

The LRB 6K requires virtually no maintenance and very little operational training. Through USB, Bluetooth and RS-232 interfaces, the LRB 6K can be operated remotely, have its stored data exported, and communicate with external GPS systems and ballistic computers (only with Bluetooth installed). Users can now communicate with the LRB 6K using Newcon Optik’s new NC Cronus app.



This device is compatible with:

Android™      Bluetooth™      Ballistic app      NC Cronus™      CivTAK/ATAK

6,000 metre measuring range
Built-in digital magnetic compass
USB, Bluetooth, NMEA and RS232 interfaces
Android Compatible
Easy to use
Optics
Magnification (x) 7
Objective lens diameter (mm) 42
Field of view (°) 6
Eye relief (mm) 20
Diopter adjustment range ±5
Interpupillary distance (mm) 58 – 72
Rangefinder

Eye safety

Class 1, eye-safe

Peripheral Compatibility

PLGR, Bal Comp, AFS, PC, AndroidTM

Peripheral Compatibility (Optional)

BT and Available plug-ins for CivTAK/ATAK

Wavelength (nm)

1550

Measuring distance capability (m)*

6,000

Distance measurement accuracy (m)

±1

Azimuth measurement accuracy (°) ±1/17

Inclination measurement accuracy (°)

±0.5/8.8

Speed detection

Yes

First/last target logic

Yes

Gating capability

Yes

Gating step (m)

≥100

Scan mode Yes
Distance between objects Yes
Horizontal distance between objects Yes
Azimuth difference between objects Yes
Inclination difference between two objects Yes
Height difference between objects Yes
Display

Meters/yards display

Yes

Interface

RS-232, USB, Bluetooth (optional), NMEA

Last 10 readings recall Yes

Reticle pattern selection

Yes

Low battery indicator

Yes

Mechanics, Electronics & Environmental

Dimensions (mm)

210x178x85

Weight without batteries (g)

1,580

Tripod mountable Yes

Power Supply

1 x 2CR5 Non-Magnetic

Battery life (# of measurements)

5,000

Operating temperature range (°C)

-40 to +60

Storage temperature range (°C) -40 to +60
Waterproofing MIL-STD-810G

*2.3×2.3m NATO standard target
