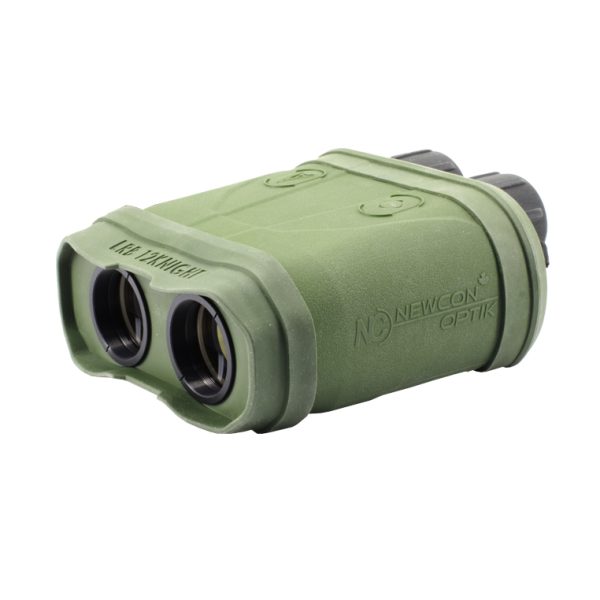

LRB 12KNIGHT

The LRB 12KNIGHT is built to outperform any handheld day/night laser rangefinder binocular available today. Packing a virtually endless set of performance features into a MIL-SPEC form factor, the LRB 12KNIGHT can handle anything professional operators can throw its way. A 12,000 metre (NATO target) measuring range, built-in digital magnetic compass, built-in GPS receiver, crystal clear LED display, and a Gen 3 night vision channel are combined into an invaluable force multiplier.

The LRB 12KNIGHT requires virtually no maintenance and very little operational training. Through USB and RS-232 interfaces, the LRB 12KNIGHT can be operated remotely, have its stored data exported, and communicate with external GPS systems and ballistic computers.

12,000 metre range
Distance, Azimuth and Elevation measurements
Measurements between two objects
Rugged design
Android Compatible
Night Vision Capability
Optics
Magnification (x) 7/5 (night)
Objective lens diameter (mm) 42
Field of view (°) 6/7
Eye relief (mm) 20
Diopter adjustment range ±5
Interpupillary distance (mm) 58 – 72
Rangefinder

Eye safety

Class 1, eye-safe

Wavelength (nm)

1550

Measuring distance range (m)*

20 – 12,000

Distance measurement accuracy (m)

±1

Azimuth measurement accuracy (°) ±1

Inclination measurement accuracy (°)

±0.5

Speed detection

Yes

First/last target logic

Yes

Gating capability

Yes

Gating step (m)

≥100

Scan mode Yes
Peripheral compatibility PLGR, Bal Comp, PC, BT, Android
Distance between objects Yes
Horizontal distance between objects Yes
Azimuth difference between objects Yes
Inclination difference between two objects Yes
Height difference between objects Yes
User GPS coordinates Yes
Target GPS coordinates Yes
Display

Meters/yards display

Yes

Computer output, type

RS-232, USB, NMEA

Last 10 readings recall Yes

Reticle pattern selection

Yes

Low battery indicator

Yes

Mechanics, Electronics & Environmental

Dimensions (mm)

210x178x85

Weight without batteries (g)

1,900

Tripod mountable Yes

Power Supply

2CR5 non-magnetic

Battery life (# of measurements)

5,000

Operating temperature range (°C)

-25 to +60

Storage temperature range (°C) -40 to +60
Waterproofing MIL-STD-810G
IIT
Generation 3
Photocathode material GaAs
IIT resolution, minimum (lp/mm) 64
Signal to noise ratio, minimum 25
Auto-gating Optional
