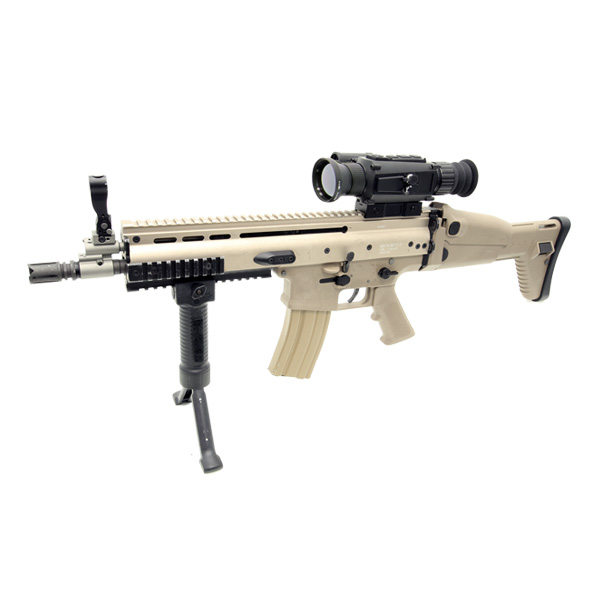

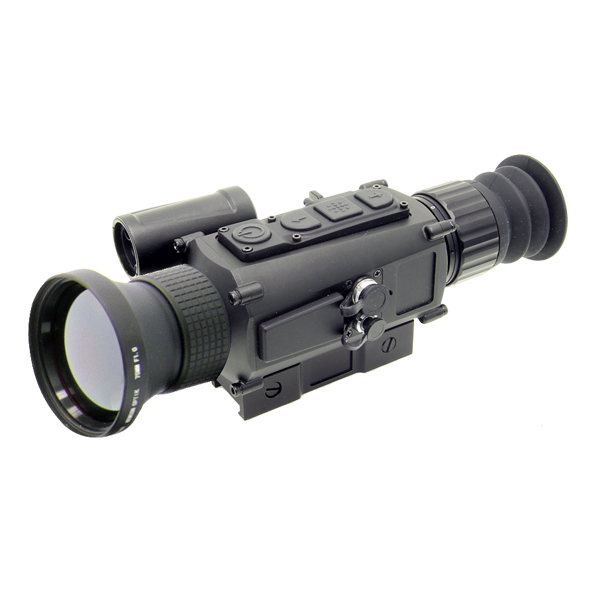

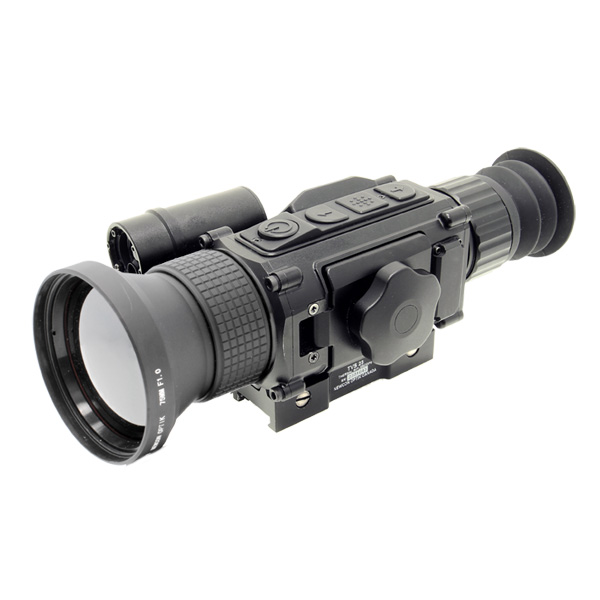

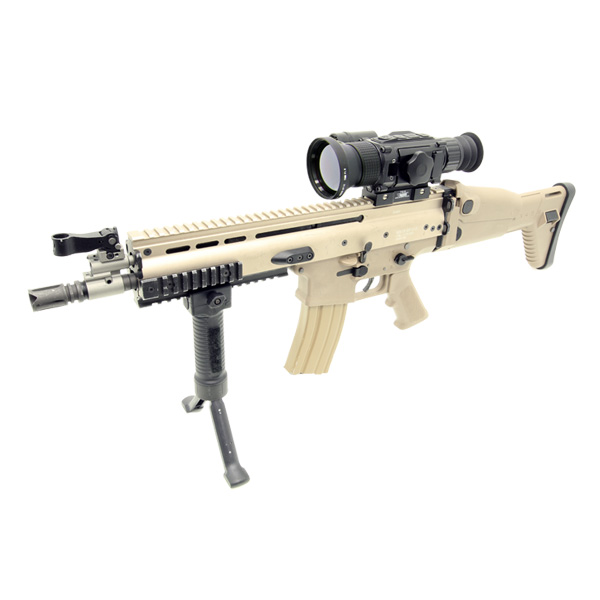

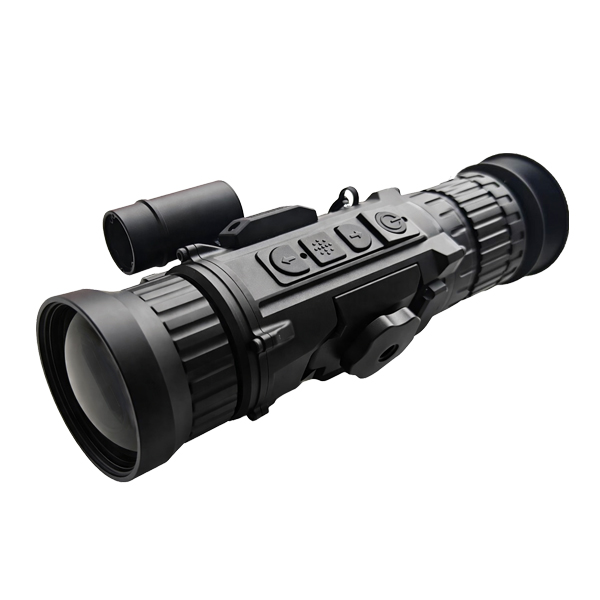

The TVS 23-75 thermal riflescope is designed to act as a force multiplier in the most demanding situations faced by border patrol, law enforcement, tactical teams and special operations forces. The TVS 23-75 functions effectively in CQB, medium and long range target engagement applications. Advanced built-in ballistics software allows for accurate firing on virtually any weapon platform, while a video output port and internal storage capability enable the capture of video and still images.
|
Accurate focus adjustment mechanism |
|
High resolution sensor |
|
2x, 4x digital zoom |
|
Superb image quality |
|
Supplied with MIL-STD-1913 QR Picatinny mount |
|
Mil-spec housing, waterproof to 1 meter |
|
Low battery indicator |
|
Variable reticles and color schemes |
|
Compact and lightweight design |
|
Optional video and picture recording |
|
Sensor |
|
|
Surface treatment |
Anticorrosion coating |
|
Material |
Aircraft grad aluminum |
| Spectrum | 8-14 |
| Detector | 640×512 |
|
Sensor type |
VOX |
|
Pitch |
12um |
|
NETD |
≤35mk (normal temperature) |
| DRI (m)
Human Tank |
1563/391/195 4792/1198/599 |
|
Frame rate |
50Hz |
|
Zoom |
1x,2x,4x |
|
Infrared lens |
75mm |
| Field of view | 8.7°×7° |
| Polarity | White hot, black hot, sepia, red hot, green hot |
| Reticle | YES, Customized |
| Brightness | Auto/manual |
| Contrast | Auto/manual |
| DDE technology for contrast | 0 ~ 4 |
| Video storage | In-built 64G, for 6hours video Or 20000 images |
| OLED | 0.4-inch 1280×1024 OLED color |
|
Laser pointing |
505m |
|
LRF (Optional) |
Side rail attachment (laser crosshairs on the image) |
|
WIFI |
Yes |
|
GPS |
GPS +-3M |
|
Compass |
Optional |
|
Battery |
2xCR123 |
|
Pupil Distance |
30mm |
|
Diopter |
5SD |
|
Battery life |
≥4 hours (normal temperature) |
| Dimensions | 265 x 114 x 96 mm |
| Weight with batteries | 1180g |
| Working temperature | -40° ~ 50° |
| Storage temperature | -50° ~ 60° |
