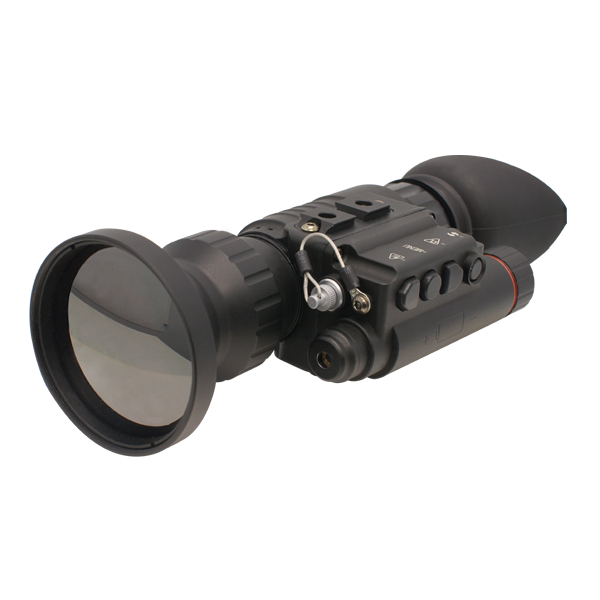

| Available optional 2x lens |
| High-resolution uncooled thermal sensor |
| Superb image clarity |
| Ergonomic design |
| Integrated laser for target designation |

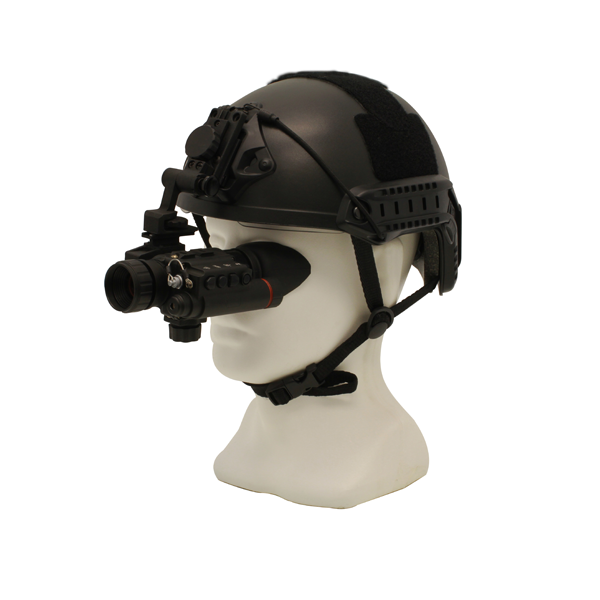

TVS 11M-A is the next generation of Newcon Optik’s field-proven thermal imaging product line. Designed as a truly multipurpose thermal imager, the ultra-lightweight and compact TVS 11M-A can be deployed handheld, helmet-mounted, weapon-mounted, or tripod-mounted for maximum versatility. Equipped with a state-of-the-art uncooled thermal
sensor, the TVS 11M-A delivers exceptionally sharp imagery and supports continuous operation for over 4 hours.
Fully MIL-SPEC, the TVS 11M-A features an integrated 2x and 4x digital zoom, which can be paired with an optional 2x A focal magnification lens to extend detection range. Standard video output, internal video/photo recording, and a built-in IR laser pointer further expand its capabilities. With the added option of tripod mounting
for rock-steady, fatigue-free observation during extended missions, the TVS 11M is the ideal thermal monocular for law enforcement, security, and search & rescue professionals.
| Available optional 2x lens |
| High-resolution uncooled thermal sensor |
| Superb image clarity |
| Ergonomic design |
| Integrated laser for target designation |
|
Sensor |
TVS 11M-A |
|
Resolution (pixels) |
384×288 |
|
Operating wavelength (µ) |
8 – 14 |
|
Sensitivity (mK @F1.0) |
<70 |
|
Video Output |
PAL |
|
DRI (m): |
|
|
Human |
576/142/71 |
|
Vehicle |
1,530/385/190 |
|
Multiple colour options |
Yes |
|
Optics |
|
|
Objective focal length (mm) |
17 |
|
Field of view (°) |
22×16.5 |
|
Eye relief (mm) |
25 |
|
Dioptric correction |
±5 |
|
Zoom |
2x, 4x |
|
Mechanics, Electronics & Environmental |
|
|
Dimensions (mm) |
145x72x50 |
|
Weight without batteries (g) |
375 |
|
Battery type |
1x 3.7V/1800m Ah Li-on or |
|
Battery life (hours) |
4 |
|
Operating Temperature (°C) |
-35 to +55 |
|
Storage Temperature (°C) |
-45 to +70 |
|
Waterproofing |
MIL-STD-810G |
|
Optional weapon-mounting systems |
S Mount, QR Mount |
|
Weapon compatibility |
Assault rifles, RPG |
| Aiming reticle | Yes |
|
Integrated Laser |
|
| Laser wavelength (nm) | 830 ±20 |
| Laser output, min (mW) | 30 |
| Laser class | 38 |
| Laser beam divergence (mrad) | 1 |
| Laser spot size at 50m (mm) | 40 |
| Detectable by: | |
| Night vision | + |
| Thermal vision | – |
| Detection range (km) | >2 |
![]() |
![]() |
| TVS 11M Hard Case | TVS 2x Lens |
![]() |
![]() |
| NVS S Mount | TVS SE |
