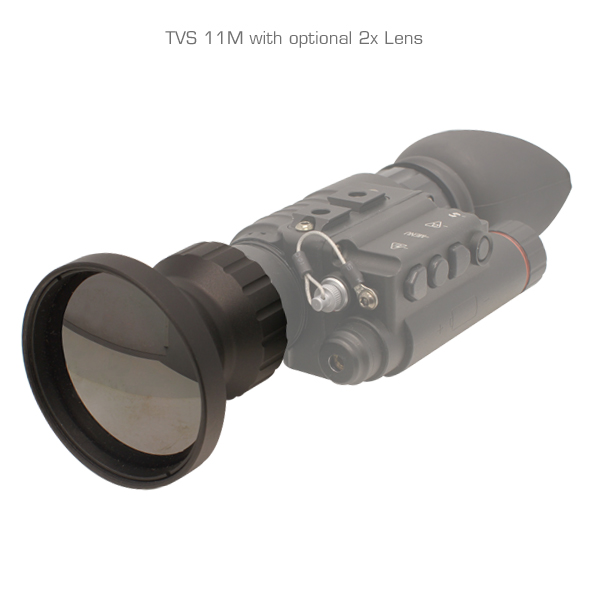

Available optional 2x lens |
High-resolution uncooled thermal sensor |
Superb image clarity |
Ergonomic design |
Integrated laser for target designation |

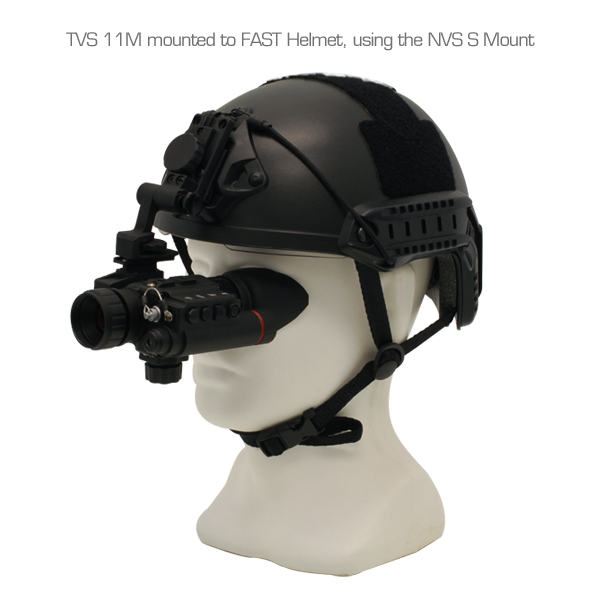

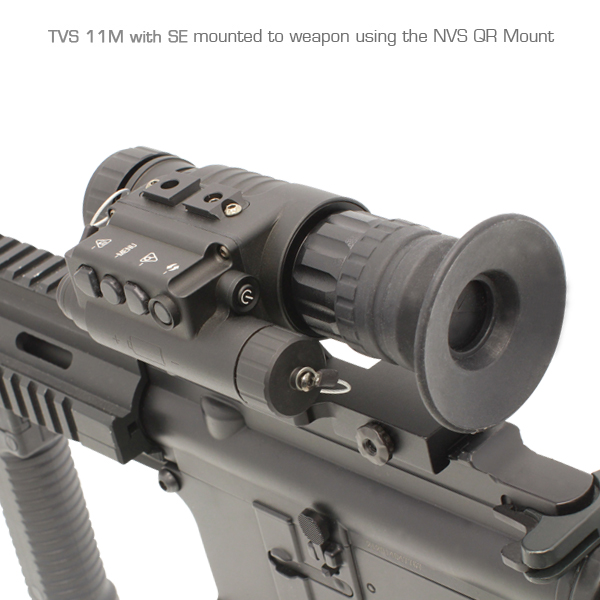

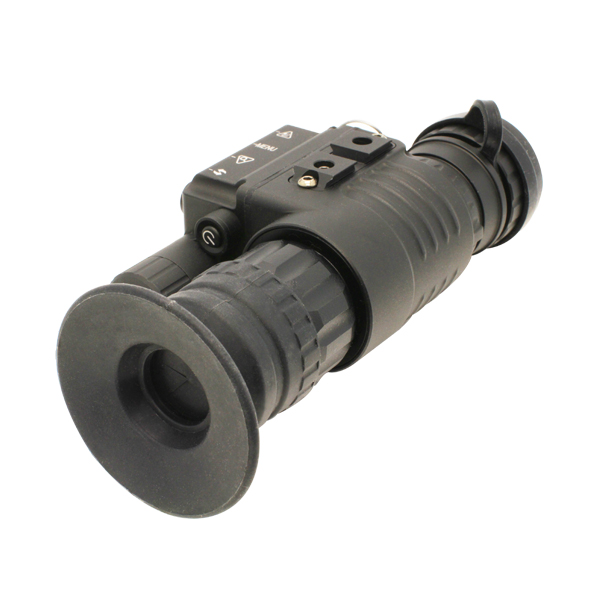

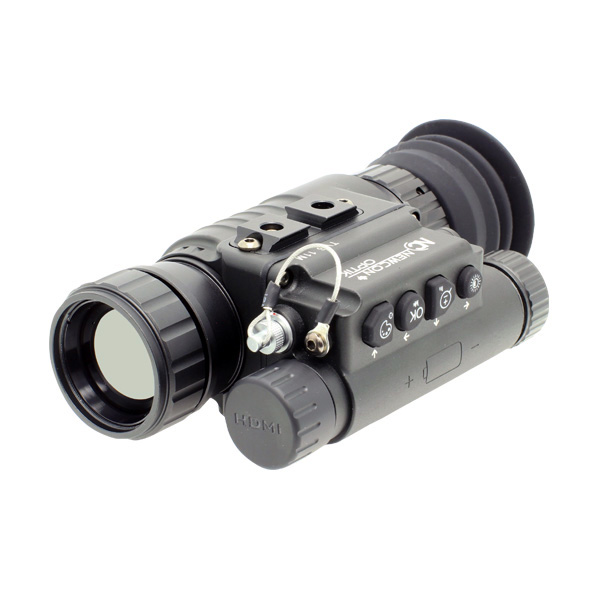

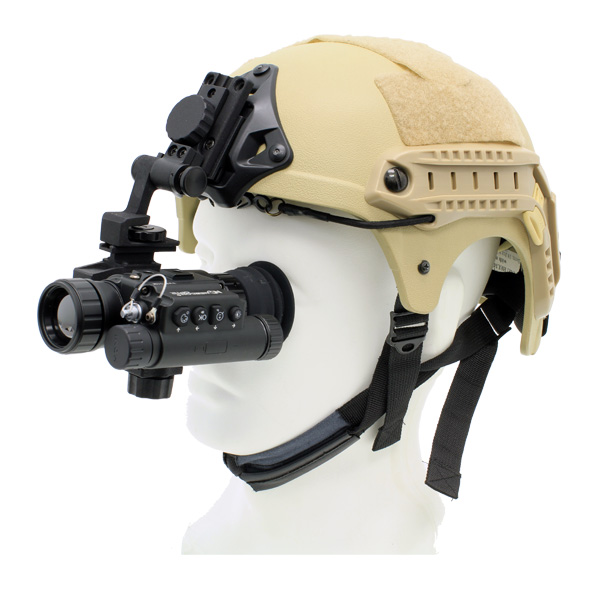

TVS 11M is the next generation of Newcon Optik’s field-proven thermal imaging product line. Designed as a truly multipurpose thermal imager, the ultra-lightweight and compact TVS 11M can be deployed handheld, helmet-mounted, weapon-mounted, or tripod-mounted for maximum versatility. Equipped with a state-of-the-art uncooled thermal
sensor, the TVS 11M delivers exceptionally sharp imagery and supports continuous operation for over 4 hours.

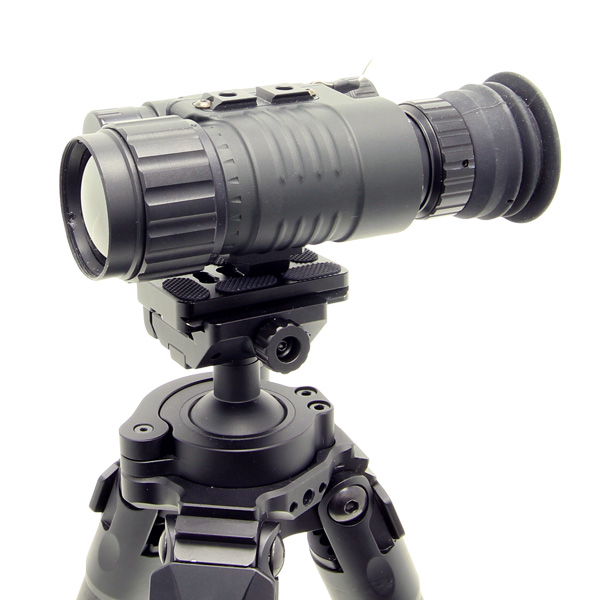

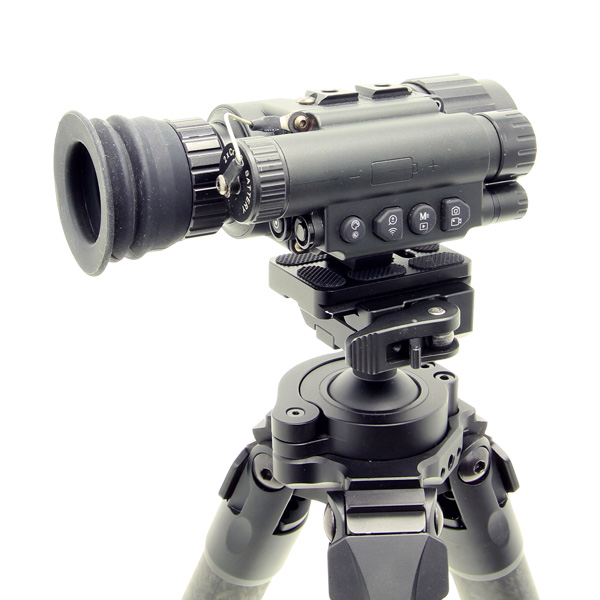

Fully MIL-SPEC, the TVS 11M features an integrated 2x and 4x digital zoom, which can be paired with an optional 2x A focal magnification lens to extend detection range. Standard video output, internal video/photo recording, and a built-in IR laser pointer further expand its capabilities. With the added option of tripod mounting
for rock-steady, fatigue-free observation during extended missions, the TVS 11M is the ideal thermal monocular for law enforcement, security, and search & rescue professionals.

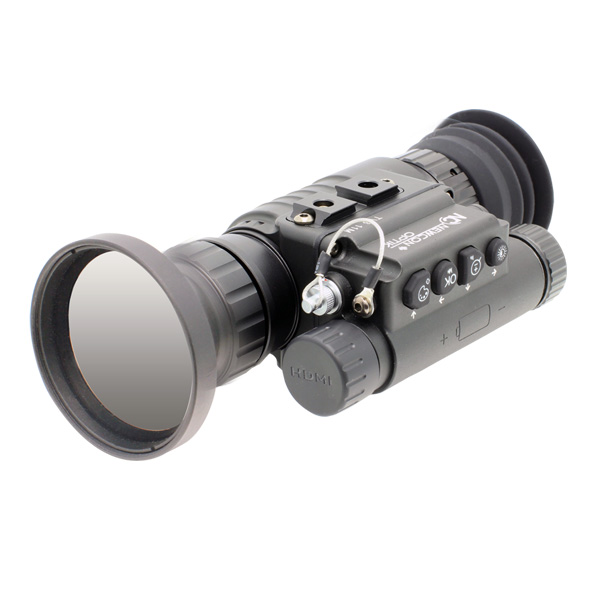

Available optional 2x lens |
High-resolution uncooled thermal sensor |
Superb image clarity |
Ergonomic design |
Integrated laser for target designation |
Sensor |
VOX UNCOOLED |
Resolution (pixels) |
384×288 |
Operating wavelength (µ) |
8 – 14 |
Sensitivity (mK @F1.0) |
<40 |
Frame rate (Hz) |
50 |
Pitch size (um) |
12 |
Video Output |
PAL |
DRI (m): |
|
Human |
1200/300/150 |
Vehicle |
3200/800/400 |
Multiple colour options |
Yes |
Optics |
|
Objective focal length (mm) |
25 |
Field of view (°) |
10.5×7.9 |
Eye relief (mm) |
25 |
Dioptric correction |
-3 to +5 |
Optical magnification |
2.2 |
Zoom |
1x, 2x, 4x |
Mechanics, Electronics & Environmental |
|
Dimensions (mm) |
125 x 75 x 50 |
Weight without batteries (g) |
440 |
WIFI |
Yes |
NFC |
Yes |
Battery type |
2x rechargeable 3.7V/900mAh CR123A (or battery pack) |
Battery life (hours) |
4 |
Operating Temperature (°C) |
-35 to +60 |
Storage Temperature (°C) |
-51 to +70 |
Waterproofing |
IP 67 (1m for 30 min) |
Aiming reticle |
Yes |
Internal video/photo recording memory |
64 GB |
Video recording/number of photos |
4 hours /10,000 shots |
