TVS 11M(640)

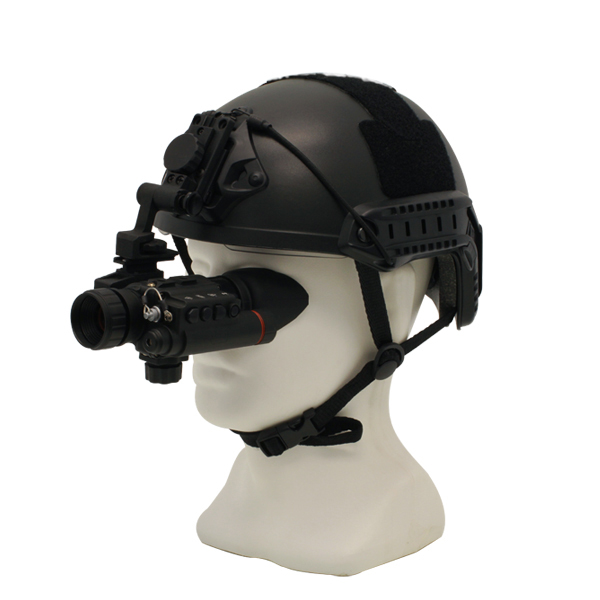

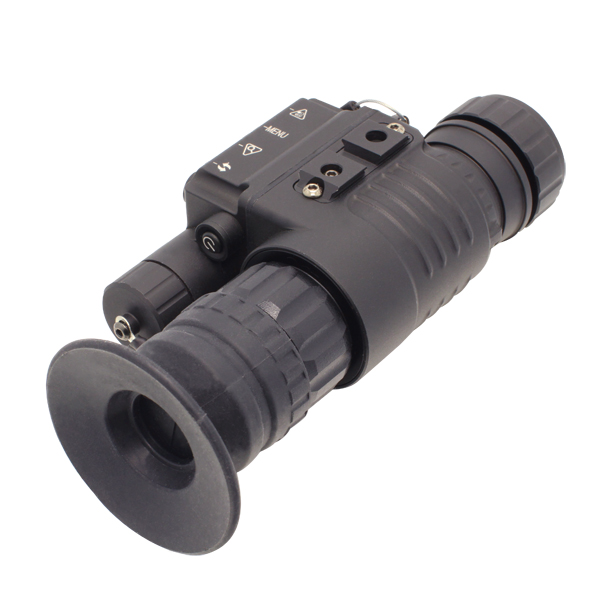

TVS 11M-640 is the next generation of Newcon Optik’s field-proven thermal imaging product line. Designed as a multipurpose thermal imager, the extremely lightweight and compact TVS 11M-640 can be deployed handheld, helmet or weapon-mounted configuration. Using a state-of-the-art uncooled thermal sensor, the TVS 11M-640 delivers incredibly clear images while achieving continuous operation of over 4 hours.

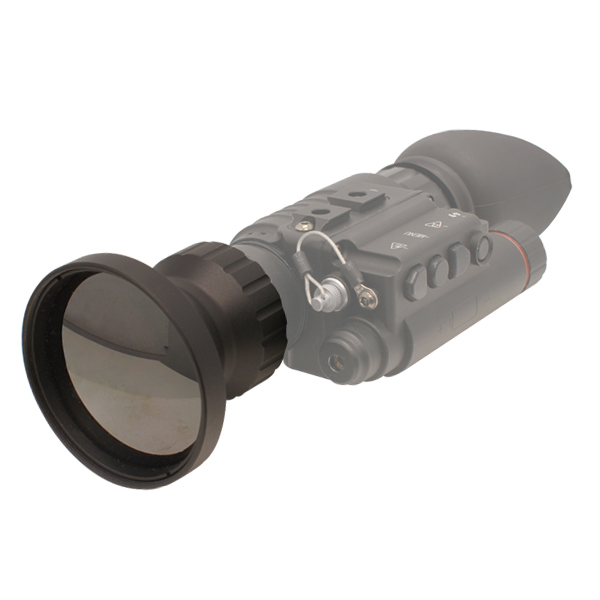

The TVS 11M-640 is fully MIL-SPEC and features a built-in 2x and 4x digital zoom which can be paired with an optional 2x A focal magnification lens for enhanced distance performance. With video-output as a standard feature, internal video/photo recording and a built-in IR laser pointer, the TVS 11M-640 is the ideal thermal monocular for military, police, and search & rescue applications.

High-resolution uncooled thermal sensor
Superb image clarity
Ergonomic design
Simple to operate

SPECIFICATIONS

Sensor

Resolution (pixels)

640×512

Operating wavelength (µ)

8~14

Sensitivity (mK @F1.0)

<40

Video Output

PAL

DRI Range, human (m)

1550/520/260

DRI Range, vehicle (m)

3800/1250/600

Multiple colour options

Yes

Optics

Objective focal length (mm)

35

Field of view (°)

12.5×10

Eye relief (mm)
25

Dioptric correction

-3 to +5

Zoom

1x, 2x, 4x

Mechanics, Electronics & Environmental

Dimensions (mm)

125 x 75 x 50

Weight without batteries (g)

440
WIFI
Yes
GPS
GPS +-3M
Compass
Optional
NFS
Yes

Battery type

2x rechargeable 3.7V/900mAh CR123A

Battery life (hours)

4

Operating Temperature (°C)

-35 to + 60

Storage Temperature (°C)

-51 to + 70

Waterproofing

IP 67 (1m for 30 min)

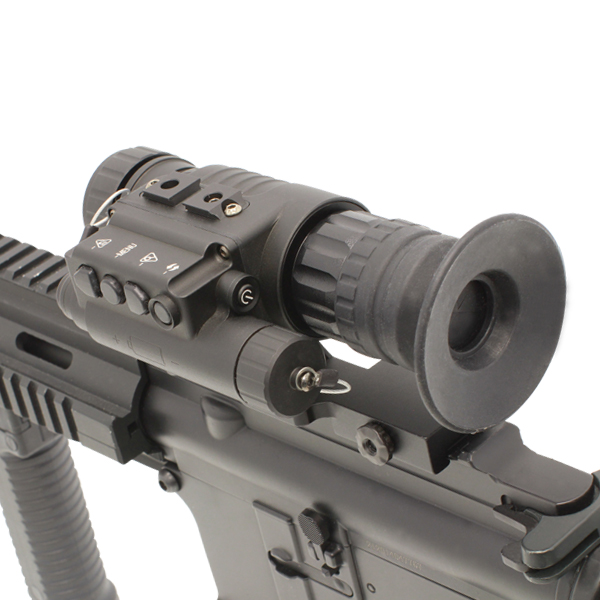

Optional weapon-mounting systems

S Mount, QR Mount

Weapon compatibility

Rifles, Machine guns & Anti-armour systems (RPG, Carl-G)

Aiming reticle

Yes
Internal video/photo recording memory
64 GB

Video recording/number of photos

4 hours /10,000 shots
