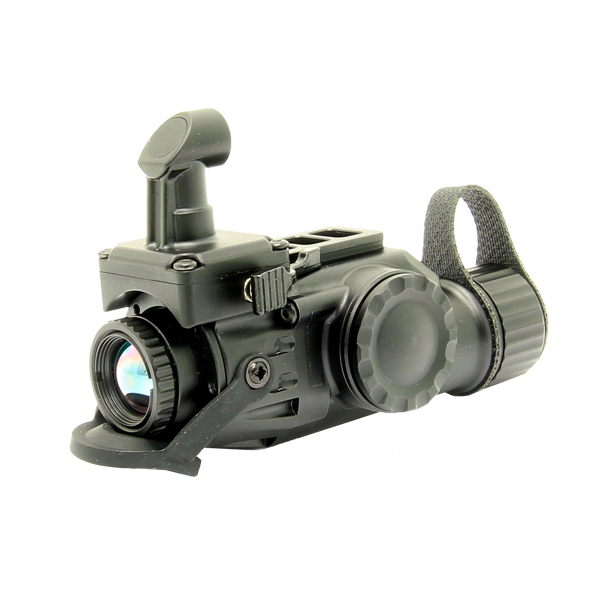

Fusion for website

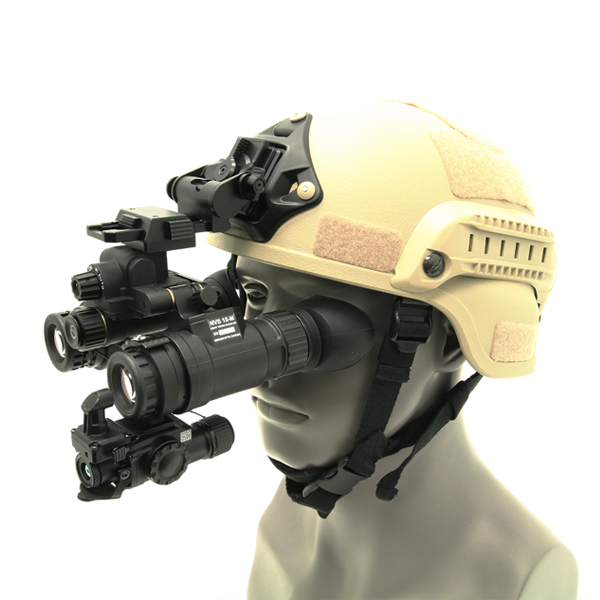

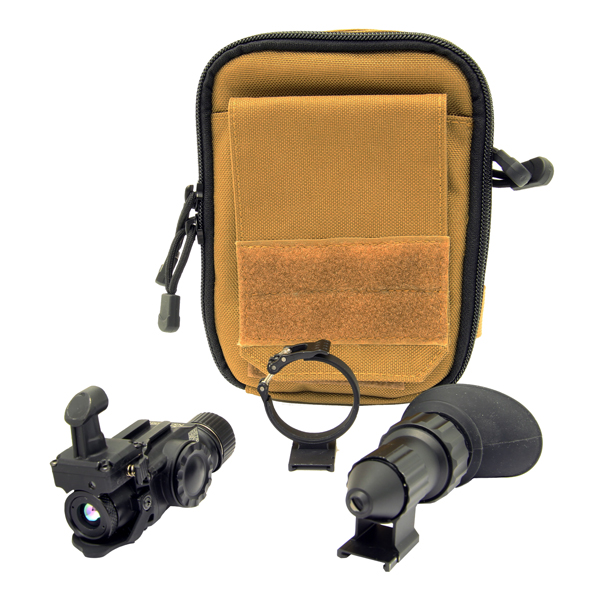

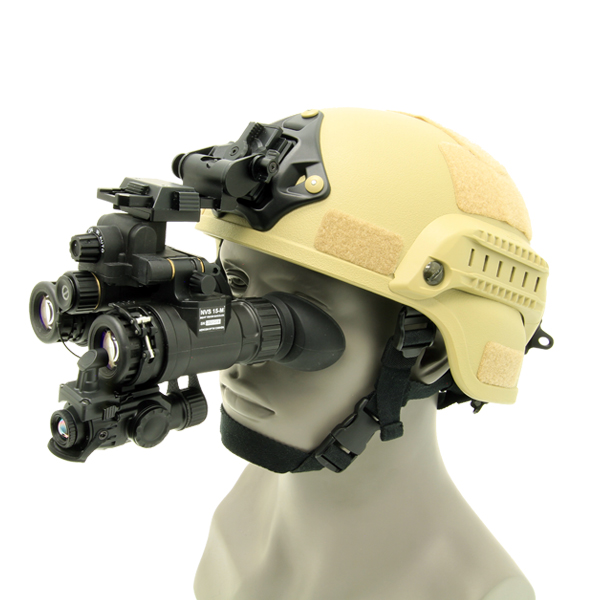

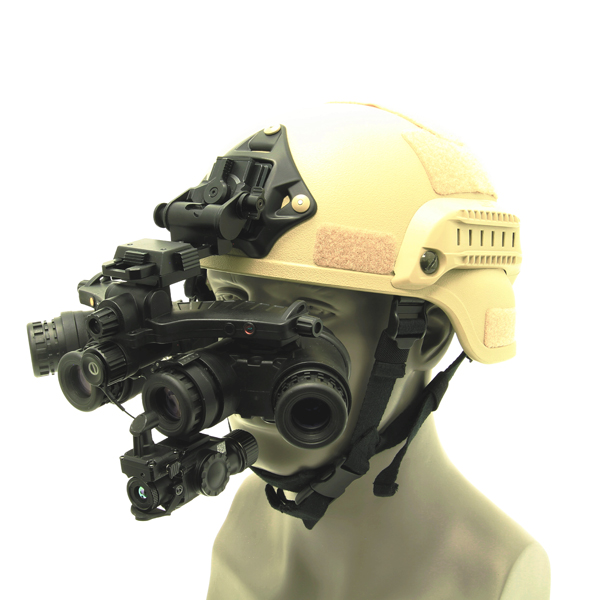

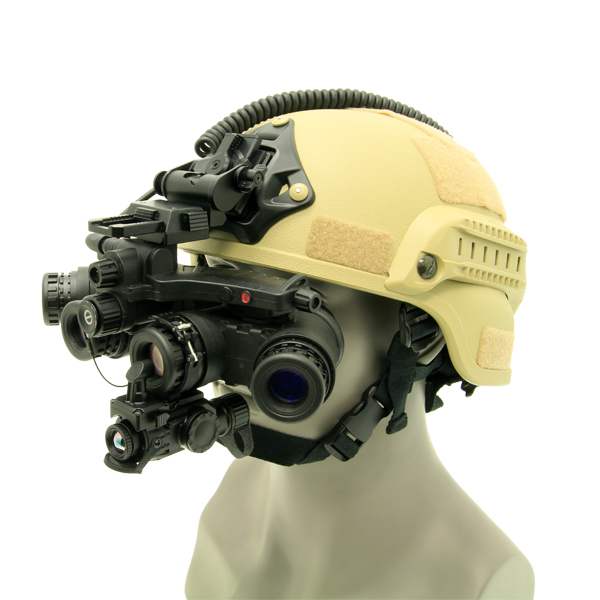

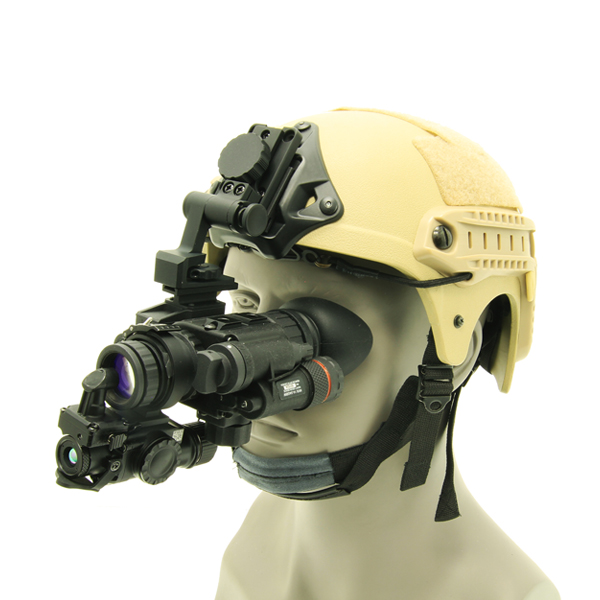

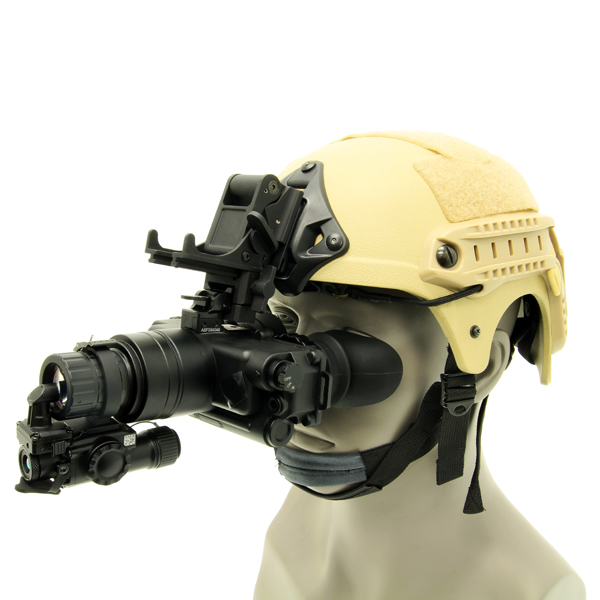

Fusion with NVS 14Fusion with NVS 15MFusion with NVS 18Fusion with NVS 7Fusion Delivery Set

Sentinel-TAC Fusion

Sentinel-TAC Fusion is a compact, lightweight multipurpose thermal clip-on designed to enhance situational awareness and significantly increase operator effectiveness during night and degraded-visibility operations. Optimized for integration with existing night vision devices, Sentinel-TAC Fusion provides advanced thermal detection and target identification capabilities that overcome the inherent limitations of traditional image-intensified night vision systems.

In addition to clip-on use, Sentinel-TAC Fusion can be configured as a handheld or head-mounted device, offering exceptional flexibility for a wide range of operational roles including surveillance, reconnaissance, target acquisition, and force protection.



Operational Advantage

By augmenting standard night vision with thermal imaging, Sentinel-TAC Fusion enables operators to rapidly detect threats, personnel, and objects of interest based on thermal contrast rather than ambient light conditions. This capability significantly improves detection performance in environments affected by darkness, smoke, haze, camouflage, or background clutter—conditions where conventional night vision is limited.

IIT

Multi usage

Clip on
hand hold
head mounted

Dimension:mm

88x38x70 (hand held)
88x38x82 (head mounted)
88x43x78 (Clip on)

Weight: g (without battery)

140 (hand held)
144 (head mounted)
92 (Clip on)

Battery

CR123 (A) 1x 2.4~4.2V

Battery life

3.5-4.5 hours

Compatibility

 NVS7, NVS14, NVS15M,
PVS7, PVS31, PVS14, GPNVG18

Radiometer resolution ratio 640 & 384 version 640×480 384×288

Wave range:um

8-12um

Detection/Recognition range (Human size) 640 & 384 version 650M/200M 500M/300M

Magnification

1X (Clip on)
1.2X (hand held and head mount)

Range of focus

25mm~∞
