| Crystal clear optics |
| M22 Reticle |
| Rugged design |
| Extremely compact |
| Built-in illuminated compass |

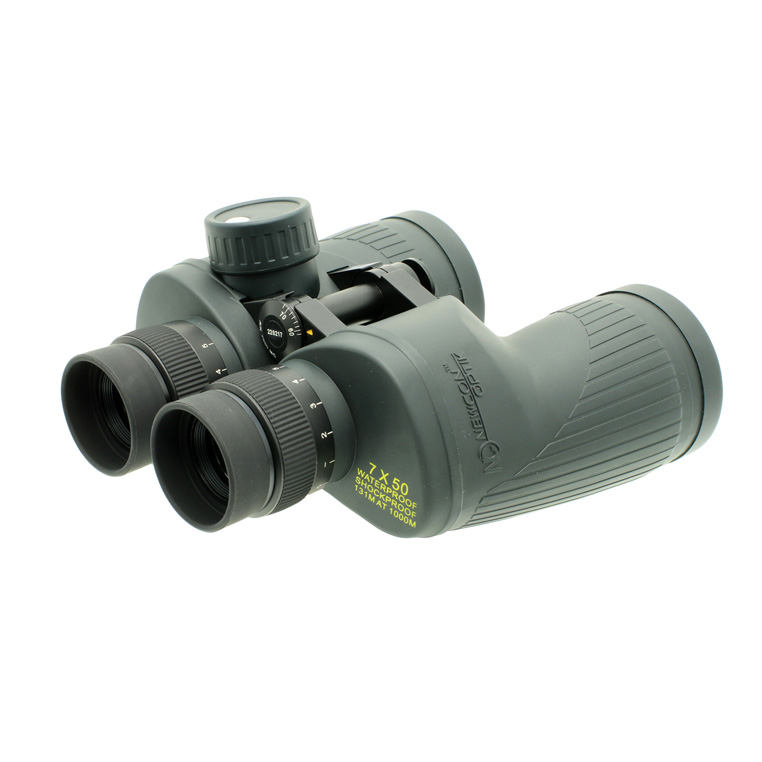

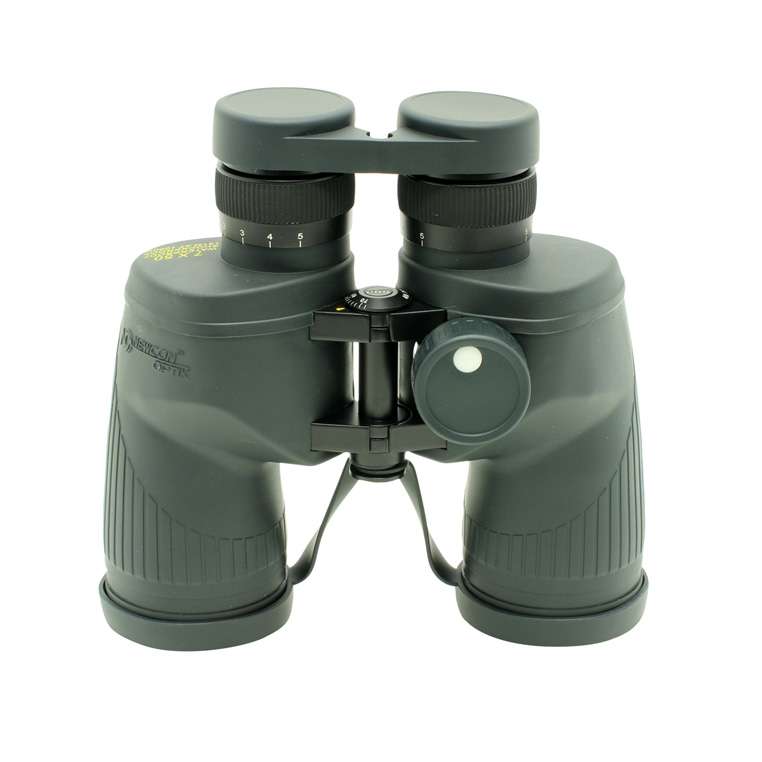

The AN 7x50MC incorporates BAK-4 Porro prisms and multi-coated lenses, delivering impressive light transmission and resolution for brilliantly clear vision. Non-slip UV-resistant rubber armouring makes this unit comfortable to operate even in cold weather.
The AN 7x50MC is waterproof and shockproof, features a military reticle and compass and adheres to the latest military standards while remaining light and compact.
| Crystal clear optics |
| M22 Reticle |
| Rugged design |
| Extremely compact |
| Built-in illuminated compass |
|
Optics |
|
|
Magnification (x) |
7 |
|
Objective lens diameter (mm) |
50 |
|
Focus range (m) |
5 – ∞ |
|
Exit pupil (mm) |
7 |
|
Eye relief (mm) |
23 |
|
Field of view – Angular (°) |
7.5 |
|
Apparent field of view (°) |
52.5 |
|
Field of view @ 1,000y (feet) |
393 |
|
Field of view @ 1,000m (metres) |
131 |
|
Diopter adjustment range |
±5 |
|
Twilight factor |
19 |
|
Relative brightness |
51 |
|
Transmission (%) |
95 |
|
Lens & prism coating |
FMC |
|
Prism type |
Porro |
|
Prism glass material |
BAK-4 |
|
Reticle type |
M22 |
|
Mechanics, Electronics & Environmental |
|
|
Interpupillary distance (mm) |
56-72 |
|
Weight (g) |
1,445 |
|
Dimensions (mm) L x W x H |
200x210x110 |
|
Illuminated compass |
Yes |
|
Tripod mountable |
Yes |
|
Operating temperature range (°C) |
-30 to +60 |
|
Storage temperature range (°C) |
-40 to +70 |
|
Nitrogen purged |
Yes |
|
Waterproofing |
MIL-STD-810G |
 |
 |
| ATA Tripod Adapter | Hard Case |
