| Crystal clear optics |
| Tripod Mountable |
| Rugged design |
| Very compact |
| M22 Reticle |

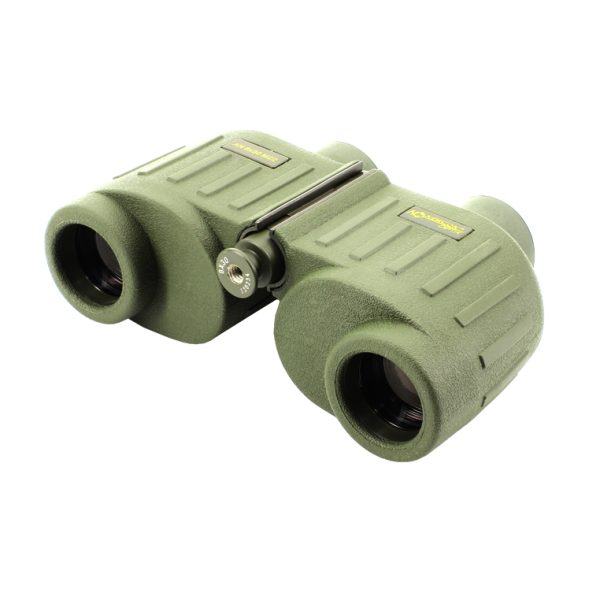

The AN 8x30M22 incorporates BAK-4 Porro prisms and multi-coated lenses, delivering impressive light transmission and resolution for brilliantly clear vision. Non-slip UV-resistant rubber armouring makes this unit comfortable to operate even in cold weather.
The AN 8x30M22 is waterproof and shockproof, features a military reticle and adheres to the latest military standards while remaining light and compact.
| Crystal clear optics |
| Tripod Mountable |
| Rugged design |
| Very compact |
| M22 Reticle |
|
Optical Characteristic |
|
|
Magnification (x) |
8 |
|
Objective lens diameter (mm) |
30 |
|
Exit pupil (mm) |
3.8 |
|
Eye relief (mm) |
18.2 |
|
Field of view – Angular (°) |
8.1 |
|
Field of view @ 1,000m (metres) |
142 |
|
Minimum Focus Distance (m) |
3.7 |
|
Light Transmission (no reticle) |
≥85 % |
|
Light Transmission (with reticle) |
≥75 % |
|
Resolution (Center) |
≤60“ |
|
Lens |
FMC Coating and hardened |
|
Prism Coating |
FMC |
|
Mechanical Characteristic |
|
|
Closed Interpupilary Distance (mm) |
56 |
|
Open Interpupilary Distance (mm) |
74 |
|
Positive Ocular Diopter Adjustment |
+5 |
|
Negative Ocular Diopter Adjustment |
-5 |
|
Focus Type |
Individual Eyepiece Focus |
|
Alignment |
|
|
Convergence |
<60’ |
|
Divergence |
≤30’ |
|
Elevation |
±15‘ |
|
Environmental Characteristic |
|
|
Housing rating |
IP67 |
|
Waterproof |
MIL-STD-810 |
|
Thermal shock |
MIL-STD-810 |
|
Mechanical shock |
MIL-STD-810 |
| Vibration | MIL-STD-810 |
| High Temperature (Operational) | +55°C |
| Low Temperature (Operational) | -30°C |
| Shock proof | Drops on to plywood from 1.0 m height |
|
Dimensional |
|
| LxWxH (Binocular Only) | 106 x 165 x 58 mm |
| Weight (Binocular Only) | 550g |
|
Special Features |
|
|
Laser protection 40dB at 1064nm |
+ |
|
Body color |
Military Green |
|
Nitrogen Filled to prevent fogging |
+ |
|
Reticle |
Custom |
 |
 |
| ATA Tripod Adapter | Hard Case |
