| 5,000 m range for Vehicle size NATO targets, and 2,000 m for Human size NATO targets |
| Devices has the ability to precisely measure distance |

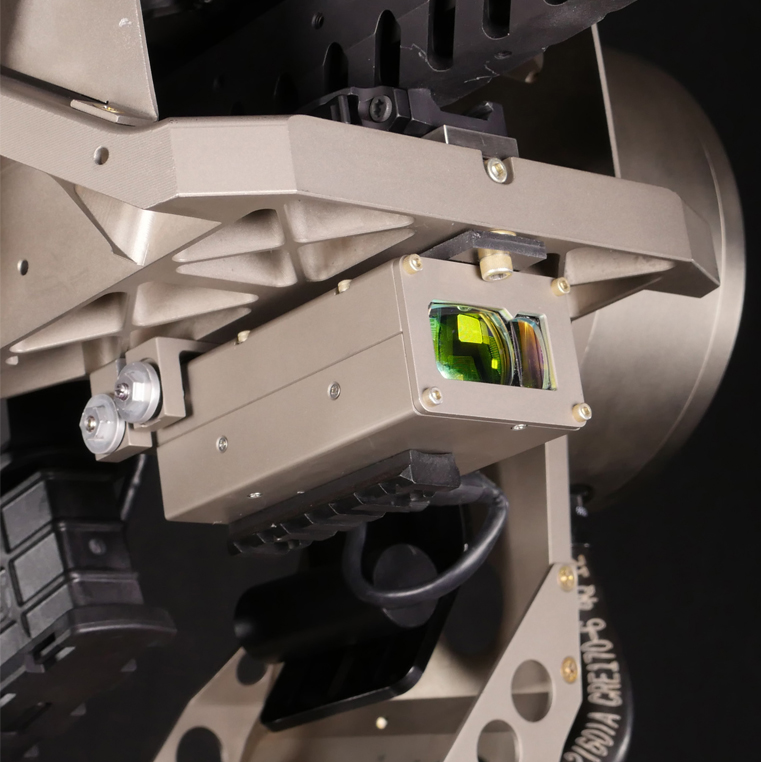

| Incorporation into various platforms |

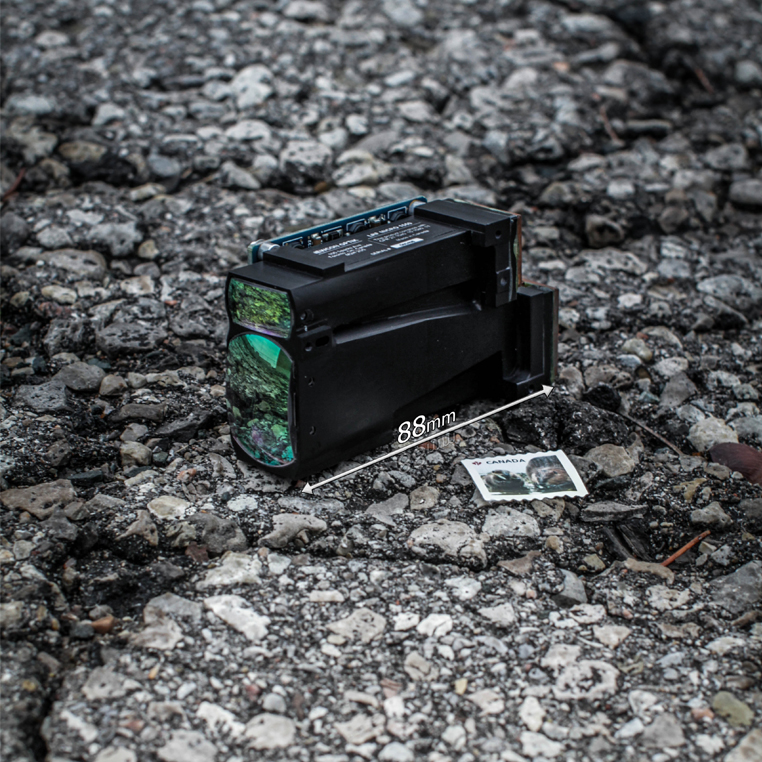

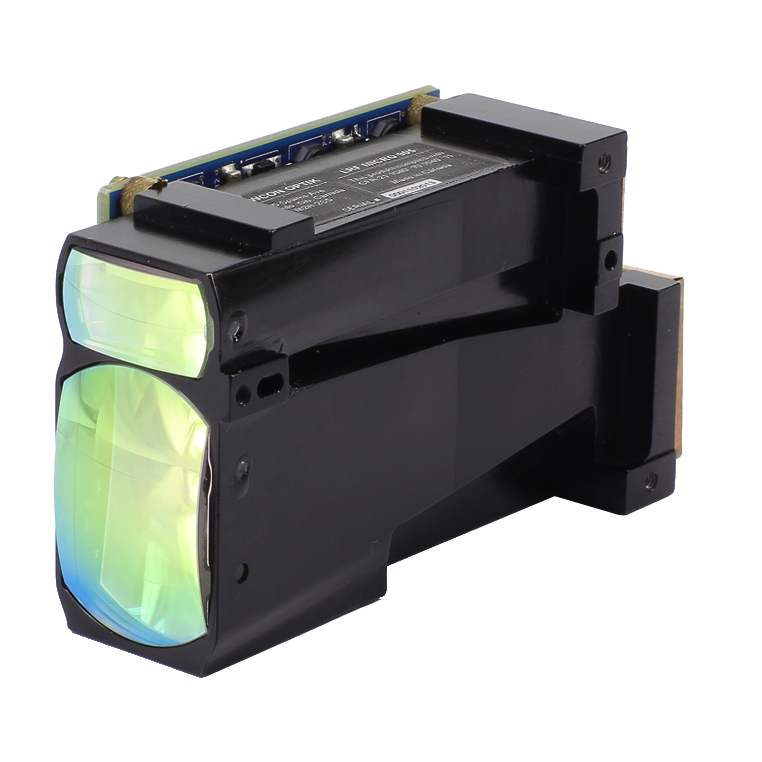

LRF MICRO NX Series (NX-5 / NX-7) Designed for seamless OEM integration, Newcon Optik’s LRF MICRO NX Series laser rangefinder modules deliver high-precision distance measurement for fire control systems, weapon-mounted platforms, border surveillance stations, industrial machinery, and other space-constrained applications. Barely larger than a deck of cards, the NX Series combines compact form factor with extended ranging performance.
The LRF MICRO NX-5 provides accurate ranging out to 5 km. This model utilizes a 1550 nm eye-safe laser, invisible to image-intensified night vision devices, making it ideal for military and security operations. The NX Series supports USB interfaces and advanced features including gating capability, fast scan mode, speed measurement, and object selection.
| 5,000 m range for Vehicle size NATO targets, and 2,000 m for Human size NATO targets |
| Devices has the ability to precisely measure distance |
| Incorporation into various platforms |
| Laser information | |
| Eye Safety | Class 1, eye-safe |
| Wavelength (nm) | 1550 |
| Specified measurement range (m): | |
| Vehicle-size NATO target, 2.3×2.3m, albedo 0.3 | 5,000 |
| Human-size NATO target, 1.0×1.0m, albedo 0.1 | 2,000 |
| Conditions: Visibility ±15 km | |
| Distance measurement accuracy (m) | ±2 |
| Azimuth measurement accuracy (m) | ±1 |
| Beam divergence, mrad | 0.5 |
| Measuring time, distance (sec) | 0.1 – 0.7 |
| Simultaneously detected targets | Multiple |
| Gating capability | Yes |
| Gating step (m) | 20 |
| Mechanics, Electronics & Environmental | |
| Dimensions without compass (mm) | 53x37x24 |
| Weight (g) | 50 |
| Interface | TTL |
| Power source | 5 – 15V DC |
| Operating temperature | -40°C … +60°C |
| Storage temperature | -50°C … +70°C |
