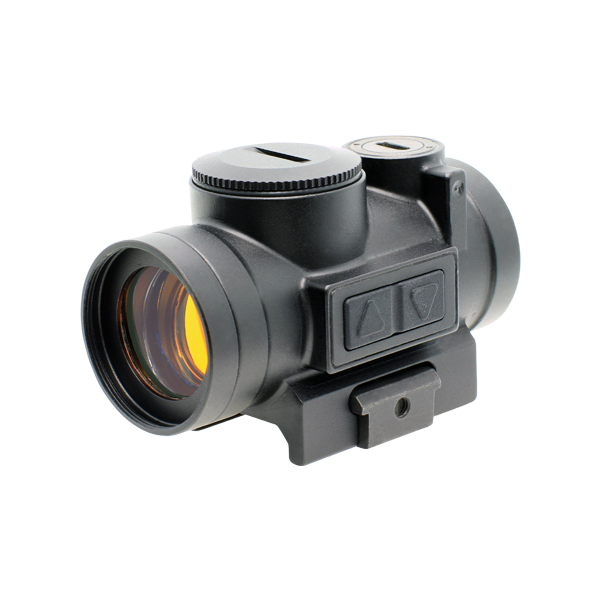

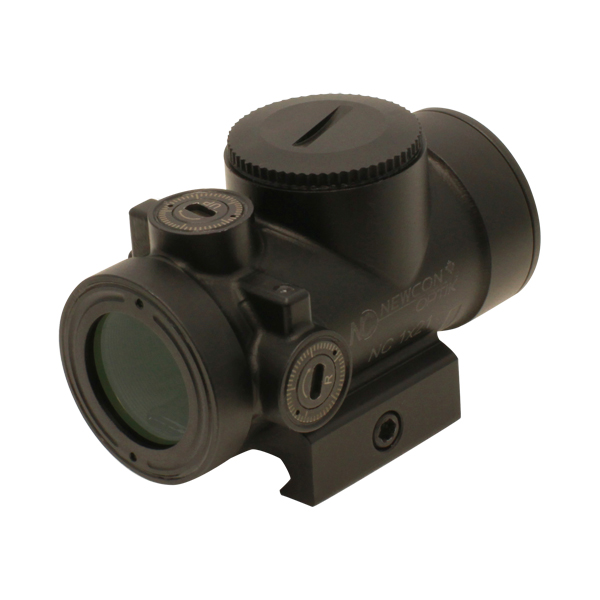

NC 1×21

The NC 1×21 is powered by a single CR2032 battery and is ideal for tactical law enforcement and military applications as well as a variety of commercial and recreational uses. This sight allows for rapid, accurate target acquisition with both eyes open — ideal for close quarters combat. The NC 1×21 features a tools-free Picatinny mount, picatinny extension adapters, tactile windage and elevation adjustments and multiple aiming point brightness levels. NC 1×21 can be mounted on various rifles and handguns.

Rapid, accurate target acquisition
Tools-free Picatinny mount
Rugged design
Extremely compact
Available with Optional ARF Anti-Reflective Filter

Optics

Maximum magnification (x)

1

Objective lens diameter (mm)

21

Parallax free

Yes

Eye relief (mm)

Unlimited

Ballistic Specifications

Reticle pattern

Red Dot

Red dot size (MoA)

4

Lit reticle

Yes

Lit reticle colour

Red

Adjustable reticle brightness

11 Settings

Windage adjustment step (MoA)

1.0

Elevation adjustment step (MoA)

1.0

Night vision compatible

Yes

Mechanics, Electronics & Environmental

Housing material type

Extruded High Strength Aluminum

Co-witness with iron sights

Yes

Dimensions (mm)

79x53x49

Weight (g)

145

Shock resistance (G)

500

Battery type

1x CR2032

Battery life, minimum (hours)

160

Operating temperature range (°C)

-40 to +50

Storage temperature range (°C)

-40 to +50

Humidity (%)

95

Waterproofing

Standard 1m/ 30min
Optional 10m/ 2h

Mounting

MIL-STD-1913


Large Raiser Small Raiser Handle Mount
