| Rapid, accurate target acquisition |
| Tools-free Picatinny mount |
| Rugged design |
| Extremely compact |
| Available with Optional ARF Anti-Reflective Filter |

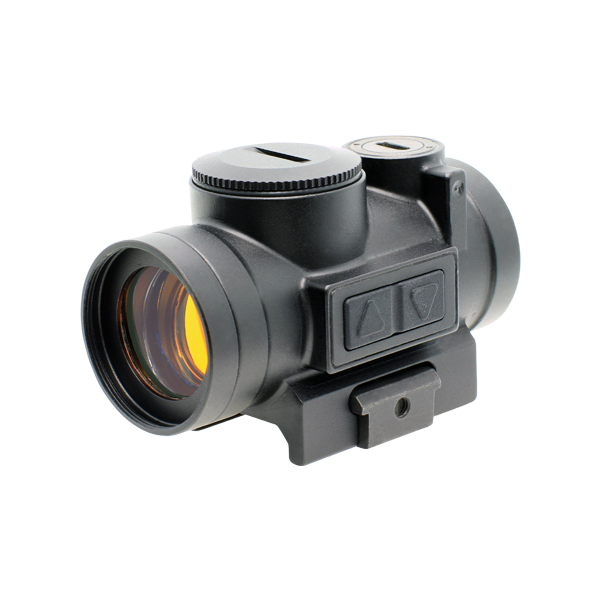

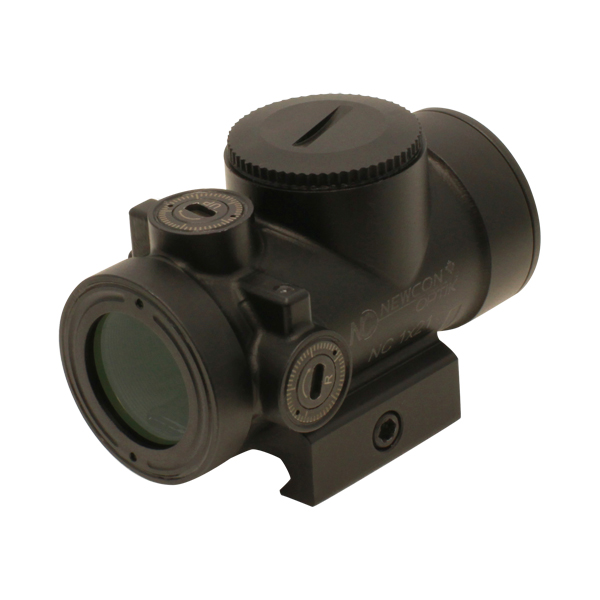

The NC 1×21 is powered by a single CR2032 battery and is ideal for tactical law enforcement and military applications as well as a variety of commercial and recreational uses. This sight allows for rapid, accurate target acquisition with both eyes open — ideal for close quarters combat. The NC 1×21 features a tools-free Picatinny mount, picatinny extension adapters, tactile windage and elevation adjustments and multiple aiming point brightness levels. NC 1×21 can be mounted on various rifles and handguns.
| Rapid, accurate target acquisition |
| Tools-free Picatinny mount |
| Rugged design |
| Extremely compact |
| Available with Optional ARF Anti-Reflective Filter |
|
Optics |
|
|
Maximum magnification (x) |
1 |
|
Objective lens diameter (mm) |
21 |
|
Parallax free |
Yes |
|
Eye relief (mm) |
Unlimited |
|
Ballistic Specifications |
|
|
Reticle pattern |
Red Dot |
|
Red dot size (MoA) |
2 |
|
Lit reticle |
Yes |
|
Lit reticle colour |
Red |
|
Adjustable reticle brightness |
11 Settings |
|
Windage adjustment step (MoA) |
0.5 |
|
Elevation adjustment step (MoA) |
0.5 |
|
Night vision compatible |
Yes |
|
Mechanics, Electronics & Environmental |
|
|
Housing material type |
Extruded High Strength Aluminum |
|
Co-witness with iron sights |
Yes |
|
Dimensions (mm) |
Without Mount: 68x41x40 |
|
With Mount: 68x41x47 |
|
|
With Riser: 68x41x67 |
|
|
Weight (g) |
115 |
|
Shock resistance (G) |
500 |
|
Battery type |
1x CR2032 |
|
Battery life, minimum (hours) |
160 |
|
Operating temperature range (°C) |
-40 to +50 |
|
Storage temperature range (°C) |
-40 to +50 |
|
Humidity (%) |
95 |
|
Waterproofing |
Standard 1m/ 30min |
|
Mounting |
MIL-STD-1913 |
 |
 |
| Large Raiser | Small Raiser |
 |
 |
| Handle Mount | HDS 5x Magnifier |
 |
|
| HDS 3x Magnifier |
