Newcon Optik is a world leader in the laser rangefinder field. Each of our highly ruggedized models utilizes advanced laser, electronic and optical technologies not only to measure distance, but to provide a variety of other geospatial target information.

In addition to having NATO target measurement ranges spanning 1,500 to 12,000 meters, many of our models can be used with our AndroidTM – based application, allowing for real-time target mapping and geospatial data communication via mobile phones and tablets.

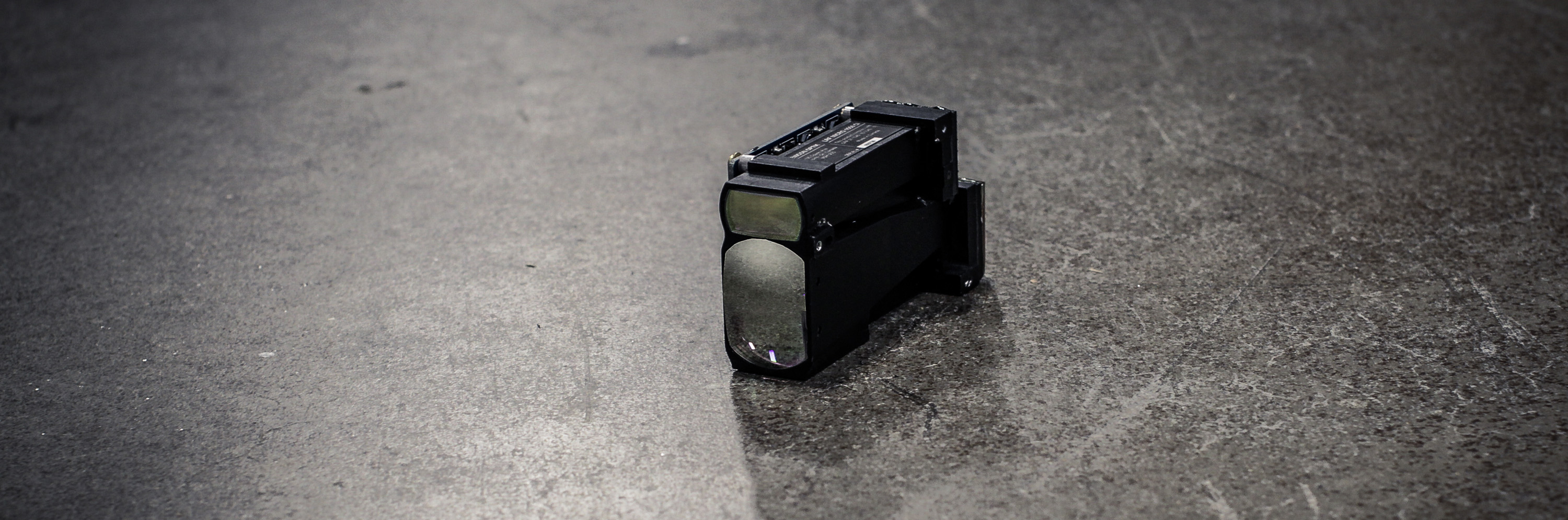

MODULES

  • LRF MICRO 1550

    Designed for OEM integration, Newcon Optik’s LRF MICRO 1550 module provides accurate measurements for fire control systems, industrial machinery, border surveillance stations, weapon mounted systems and countless other applications.

    The MICRO 1550 unit is barely larger than a deck of cards. The LRF MICRO 1550 is one of four member of the MICRO family (MICRO, MICRO CI, MICRO 1550 CI).

    The unit ranges accurately out to 5.500m (3,000 to NATO target) and utilizes a 1550nm laser that cannot be seen by image intensified night vision systems, making it ideal for defense applications. The MICRO series supports the USB interface. Other features include gating capability, fast scan mode, speed measurement, and object selection, among others.

  • LRF MICRO 1550 CI

    Designed for OEM integration, Newcon Optik’s LRF MICRO 1550 CI module provides accurate measurements for fire control systems, industrial machinery, border surveillance stations, weapon mounted systems and countless other applications.

    The MICRO 1550 CI unit is barely larger than a deck of cards. The LRF MICRO 1550 CI is one of four member of the MICRO family (MICRO, MICRO CI, MICRO 1550).

    The unit ranges accurately out to 5.500m (3,000 to NATO target) and utilizes a 1550nm laser that cannot be seen by image intensified night vision systems, making it ideal for defense applications. The MICRO series supports the USB interface. Other features include gating capability, fast scan mode, speed measurement, and object selection among others.

  • LRF MOD 25HFLC

    This high-frequency laser rangefinder module enables highly accurate range acquisition of low reflection targets at ranges of up to 30 kilometres. The module can be effectively used in marine navigation, long-range reconnaissance, naval and coast guard patrol, and other professional applications requiring highly accurate, long distance measurements.

    Liquid cooling is no longer required for the MOD 25HFLC, which enables higher-frequency data acquisition up to 10Hz with no cooling time required. This gives the system the smallest footprint and weight profile.

    The unit can be integrated with other systems and communicate via RS-422. In designing this module for precision target acquisition, special attention was given to the ability to boresight the units with a pre-designed optical platform. A removable day sight with precise alignment to the laser is provided to enable quick boresighting and visual integration with other observation systems.

  • LRF MOD 6EC

    The LRF MOD 6EC was designed specifically for remotely operated small platforms. In addition to its outstanding functionality, this new module can be attached to Mini-Typhoon, CLAWS and other systems with a quick release mount. The unit is designed to endure the harsh operating conditions of the real world. It can withstand high vibration, a wide temperature range, dust, rain and RF jammers. The LRF MOD 6EC provides distance, speed, azimuth and elevation measurements. Other features include gating, fast scan and target selection.

    The unit can be integrated with other systems and communicate via RS-232. In designing this module for precision target acquisition, special attention was given to the ability to boresight the units with a pre-designed optical platform. A removable visual eyepiece and a video camera attachment are provided to enable quick boresighting and visual integration with other observation systems.

ACCESSORIES

  • LRF AC/DC Adapter

    AC/DC Adapter for LRM 3500M / LRB 6K / 12K / 12KNIGHT.

  • LRF Car Adapter

    Cigarette lighter adapter for LRM 3500M / LRB 6K / 12K /12KNIGHT.

  • LRF GPS Cable

    NSN#: 5995-20-011-6019

    For use with LRB 12K, 12KNIGHT and 6K; and LRB 4000CI and 6000CI. Connects devices to Rockwell Collins, DAGR, Polaris ™ and PLGR GPS receivers.

  • LRF Smart Cable

    Connects LRM 3500M, LRB 12K, LRB 12KNIGHT or LRB 6K to the micro USB port of Android-based devices.

  • LRM Hard Case

    MIL-SPEC hard case for protection while transporting/storing unit and its standard delivery set.

  • NVS U Coupler

    NSN#: 5855-20-011-6791

    NVS U Coupler is a clamp-on mechanical adapter with flip-out feature that provides the ability to attach a night vision monocular (NVS 14 /PVS 14) or goggles (NVS7/ PVS7) to various tactical daytime equipment such as Laser Range Finders, Spotting Scopes, Binoculars, Sniper Scopes, etc.

  • SEEKER Hard Case

    MIL-SPEC hard case for protection while transporting/storing unit and its standard delivery set.

  • TACT 3-S Tripod

    The TACT-3S Model Tactical Tripod was selected by the US Army and US SOCOM for use in their ground target location systems. The TACT-3S is “amagnetic” and will not adversely influence any sensor device equipped with a digital magnetic compass. The TACT-3S is a rugged combat proven field tripod platform with a terrain-leveling gimbal that allows the user to adjust the position of the optical device for uneven terrain.

    This tripod is for use with a wide range of high magnification field optics, laser range finders, thermal cameras and night vision devices. The TACT-3S weighs approximately three pounds, has a versatile tripod head with a detachable base plate, multi-section mast, and a wide stable tripod base. The mast can be detached from the tripod base and used with an internal stored ground spike as a monopod. Constructed of high-strength, lightweight, aerospace-grade aluminum alloys, the TACT-3S deploys quietly and provides rock solid stability. This field tripod design allows shooters to use field optics comfortably from the prone to sitting positions.
