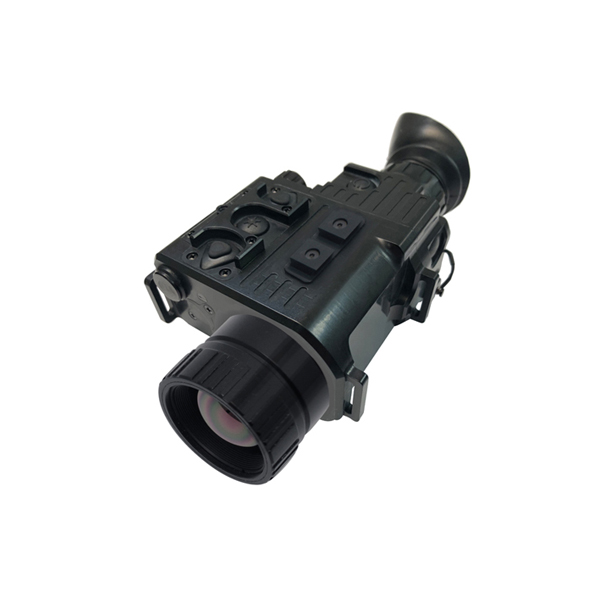

TVS 11

The TVS 11 is designed for tripod mounting as well as handheld use and utilizes an advanced high resolution thermal sensor. This thermal imaging monocular is well suited to a variety of tactical, law enforcement, search and rescue, and industrial applications. The device utilizes passive infrared sensing technology allowing users to detect extremely small differences in the temperature of objects, people and other heat sources within the field of view.

Unlike traditional night vision devices, the TVS 11 can be operated 24 hours a day, in daytime and at night, even in the total darkness of an enclosed space. The device can also see through smoke, fog and other obscurants. The unit features “black hot” and “white hot” image polarity and can also be connected to external display devices allowing other parties to view the observed image in real time.

High-resolution uncooled thermal sensor
Superb image clarity
Ergonomic design
Simple to operate

Sensor

Generation

Pico 640 Gen 2

Sensor material

Amorphous silicon

Resolution (pixels)

640×480

Detector pitch (µ)

17

Operating wavelength (µ)

8 – 14

Sensitivity (mK @F1.0)

<55

Frame rate (Hz)

50

Video interface

Composite Video, PAL

DRI Range (m)*

Human

1,200 / 300 / 150

Vehicle

3,150/800/400

Optics

Objective focal length (mm)

35

Field of view (°)

17.6×13.3

Eye relief (mm)

25

Dioptric correction

-6 to +2

Zoom

1x, 2x, 4x

Mechanics, Electronics & Environmental

External power adaptor

(optional) 12V input

Dimensions (mm)

165x105x65

Weight without batteries (g)

650

Battery type

4x AA

Battery life, non-rechargeable (hours)

5

Battery life, rechargeable (hours)

3.5

Maximum power consumption (W)

2.5

Operating Temperature (°C)

-30 to +55

Storage temperature (°C)

-30 to +55

Operating humidity permissible (%)

95

Shockproof

5 drops on sand from height of 1m

Waterproofing

MIL-STD-810G

Country of origin

Device

Canada

Detector

ULIS, France

Signal processing unit

Lithuania

*Maximum Detection/Recognition/Identification to target
