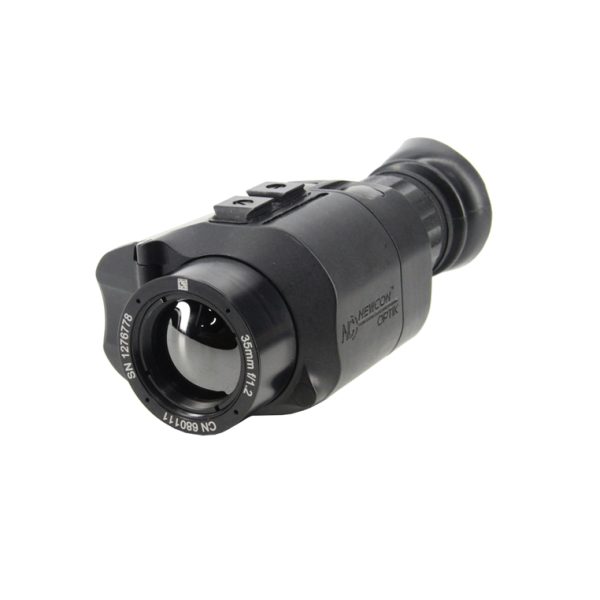

TVS 11 (384_30Hz)

The TVS 11 (384_30Hz) thermal imaging monocular is well-suited to a variety of tactical, law enforcement, search and rescue, and industrial applications. It utilizes passive infrared sensing technology allowing users to detect extremely small differences in the temperature of objects, people and other heat sources within the field of view.

Unlike traditional night vision devices, the TVS 11 (384_30Hz) can be operated 24 hours a day, in daytime and at night, even in the total darkness of an enclosed space. It can also see through smoke, fog and other obscurants and features black hot and white hot image polarity. The unit can also be connected to external display devices allowing other parties to view the observed image in real time. The TVS 11 (384_30Hz) is designed for helmet, head and weapon mounting as well as hand-held use.

High-resolution uncooled thermal sensor
Superb image clarity
Ergonomic design
Simple to operate

Sensor

Resolution (pixels)

384×288

Operating wavelength (µ)

8 – 14

Sensitivity (mK @F1.0)

<70

Video Output

PAL

DRI Range (m)*

1,200/300/150

Optics

Objective focal length (mm)

35

Field of view (°)

10.7×8.0

Eye relief (mm)

25

Dioptric correction

-6 to +2

Zoom

2x, 4x

Mechanics, Electronics & Environmental

Dimensions (mm)

130x80x60

Weight without batteries (g)

396

Battery type

2x CR123

Battery life (hours)

4

Operating Temperature (°C)

-35 to +55

Waterproofing

MIL-STD-810G

*Maximum Detection/Recognition/Identification to human-sized target
