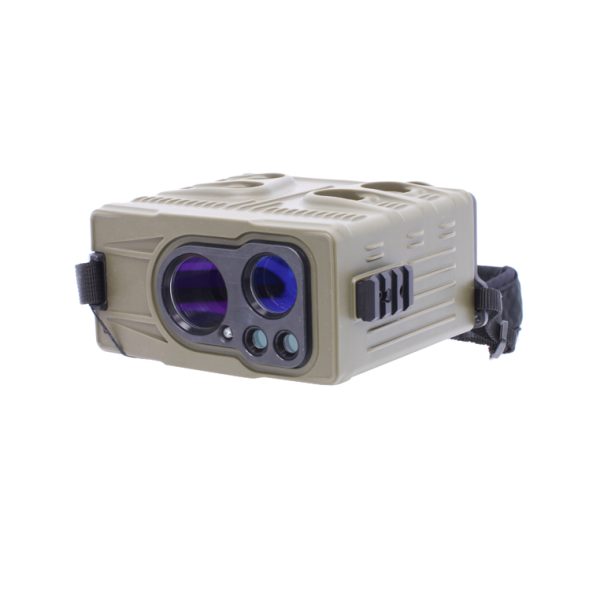

LAS 1000

The LAS 1000 detects snipers and other forward observers before they fire a shot. While most sniper detection systems are acoustic and help operators respond to a threat after it has already inflicted damage, the LAS 1000 functions on optical principles and can therefore pinpoint the location of a threat before it has a chance to act. This system is ideal for border and perimeter security as well as VIP protection details.

The LAS 1000 detects lenses and reflectors in its line of site even if these objects are covered behind bushes, windows or windshields. The device can be handheld or mounted on a tripod and when an optical reflector of any kind is detected, its position is marked in field of view. For added situational awareness, an audio signal can also be set to automatically activate upon the detection of a threat. The LAS 1000 can reliably detect snipers and other optical equipment in a variety of tactical situations.

Detection range of 1000m
User-friendly operation
Rugged design
8GB Memory storage

Optical parameters:

Objective lens focal distance, mm

50 / F2.0

CCD resolution, pixels

CCD, 752×582

Minimal illumination, lux

0.005

Video output refresh rate, Hz

50

Field of view, degrees

5.2×4

Magnification

7x

Display resolution, pixels

800 x 600 OLED SVGA

Diopter adjustment of the eyepiece

± 4

Detection parameters:

Maximum detection range, 4×30 weapon sight (m)

1,000

Minimum detection distance of the optical objects, m

70

Distance measuring accuracy, m

10

Angular size of the detection zone, degrees or mils

1.8° / 32 mils (V) x 0.03° / 0.5 mils (H)

Maximum horizontal scanning speed, degrees/sec

30

Compass:

Measured azimuth range

360°

Accuracy

±2.0° RMS at level

Inclinometer:

Measured elevation range

±90°

Accuracy

±1.0° RMS (within ±80°)

Capabilities

Target global position calculation

Yes

Global position sensor

GPS

Electrical parameters:

Voltage range

6-12VDC

External power supply voltage

(12-16VDC optional)

Power supply

2x 18650 or 4x CR123

Battery life continuous operation, min, hours

5

Video output

Type

PAL or NTSC

Environmental parameters:

Tripod mount

Present, ¼”

Dimensions, mm

142x170x70

Weight, g

1,200

Operating temperature range (°C)

-20 to +45

Storage temperature range (°C)

-40 to +65

Relative humidity

≤ 98 % under + 25°

Waterproofing

IP65
