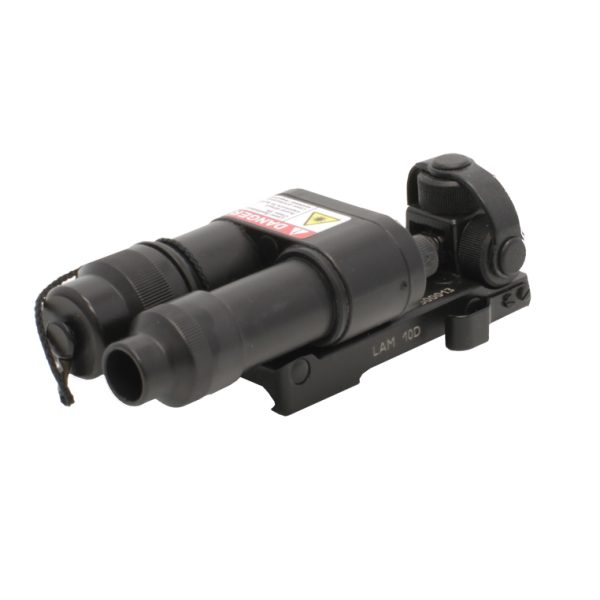

LAM 10D

The LAM 10D is a single channel IR laser aimer designed to reach out to 1,000m. For night operations, this simple, extremely lightweight device is the right choice for professional operators demanding unrivaled performance and reliability. The unit is constructed of high strength aluminum and can withstand rigors of tactical life on virtually any weapon platform.

Long range visible laser
Mountable on various assault rifles
Extremely rugged design
Wired pressure switch
45m for 1 hour waterproofing

Infrared Laser Aimer

Eye safety

IIIb

Distance, (m)

1,000

Beam divergence, FWHM (mrad)

0.3

Spot size @ 100m (mm)

30

Wavelength (nm)

850 ±10

Ballistics

Windage adjustment step (mrad)

0.5

Windage adjustment range (mrad)

±20

Elevation adjustment step (mrad)

0.5

Elevation adjustment range (mrad)

±20

Retention after 1,000 shots (mrad)

1

Mechanics, Electronics & Environmental

Dimensions (mm)

114x45x32

Weight without batteries (g)

150

Shock resistance (G)

300

Quick release

Yes

Battery type

CR 123

Battery life, (hours)

10

Operating temperature range (°C)

-40 to +60

Storage temperature range (°C)

-40 to +60

Waterproofing

45m/1h
