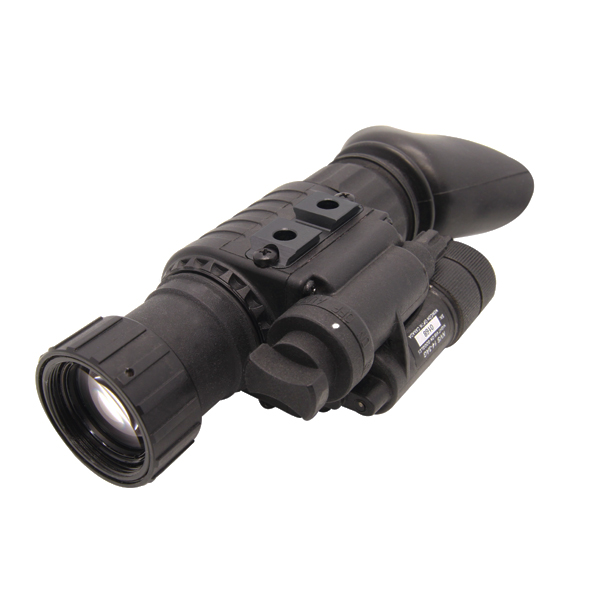

NVS 14-3XT

NSN#: 5855-20-009-3878

The NVS 14-3XT night vision monocular has been proven in deployments in conflict zones and by peacekeepers around the world. It utilizes an advanced Gen 3 image intensifier tube. The NVS 14 series monoculars are among the smallest and lightest products of their kind. Each model can be hand-held, or mounted on a weapon, head, or helmet. Optional lens attachments turn NVS 14 monoculars into 3x or 5x night vision systems. Capable of operating for extended periods on either a single AA or CR 123 battery and delivered with a built-in auto off function, the NVS 14-3XT is packed with industry-leading features.

Battle ready
Superior optics
Easy to use
Custom NVS Bridge
Manual Gain Adjustment
IIT

Generation

3

Photocathode material

GaAs

IIT resolution, minimum (lp/mm)

64

Signal to noise ratio, minimum

25

Field of merit, minimum

1600

Auto-gating No
Optics

Magnification (x)

1

Field of view (°)

40

Objective F#

1.17

Objective focal length (mm)

27.5

Focus range (m)

0.25 – ∞

Eye relief (mm)

25

Diopter adjustment range

-6 to +5

Mechanics, Electronics & Environmental

Dimensions (mm)

118x69x49

Weight without batteries (g)

300

Built-in IR illuminator

Yes

Battery type

1x AA or 1xCR123

Reverse polarity protection

Yes

IR operation indicator

Yes

Automatic shut-off system

Yes

Upright shut-off system

Yes

Battery life (hours)

40

Operating temperature range (°C)

-50 to +55

Storage temperature range (°C)

-50 to +70

Waterproofing

MIL-STD-810G

Waterproofing GCS Upgrade

20m, 30min
