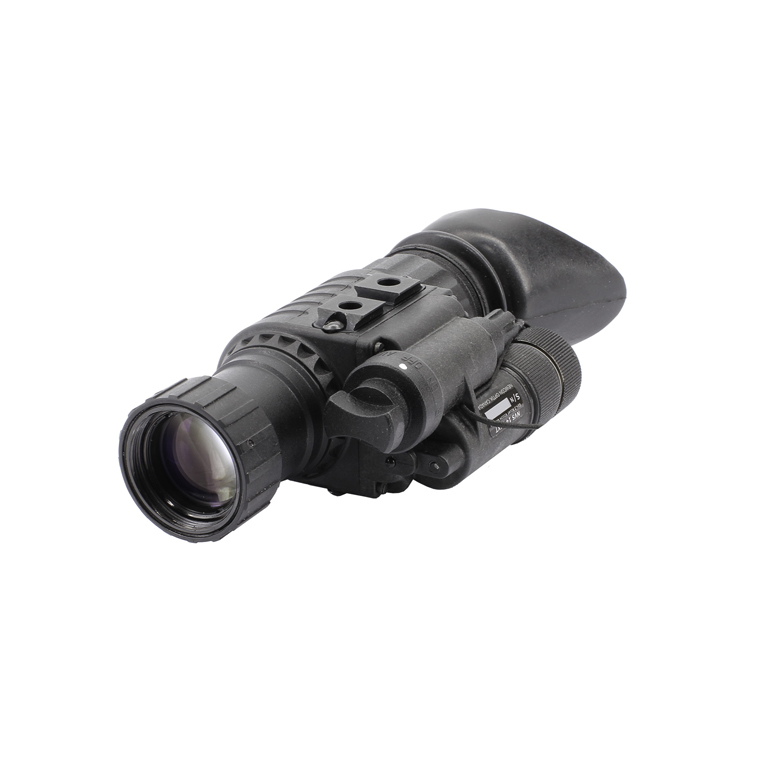

NV 207-G2

The NV 207-G2 night vision monocular provides the ability to observe the terrain under the darkest conditions.

NV 207-G2 uses the same approach to night vision taken from our popular battle-tested NVS 14 series and utilizes a Generation 2+ image intensifier tube. No export permit is required for this device.

Features

Gen 2+ IIT

Superior optics

Easy to use

IIT

Generation

2+

Photocathode material

S-25

IIT resolution, minimum (lp/mm)

53

Signal to noise ratio, minimum

18

Optics

Magnification (x)

1

Field of view (°)

40

Objective F#

1.17

Objective focal length (mm)

27.5

Focus range (m)

0.25 – ∞

Eye relief (mm)

25

Diopter adjustment range

-6 to +5

Mechanics, Electronics & Environmental

Dimensions (mm)

118x69x48

Weight without batteries (g)

300

Built-in IR illuminator

Yes

Reverse polarity protection

Yes

IR operation indicator

Yes

Low battery indicator

Yes

Automatic brightness control

Yes

Automatic shut-off system

Yes

Battery type

1x AA or 1xCR123

Battery life (hours)

40

Operating temperature range (°C)

-50 to +55

Storage temperature range (°C)

-50 to +70

Waterproofing

IP67
