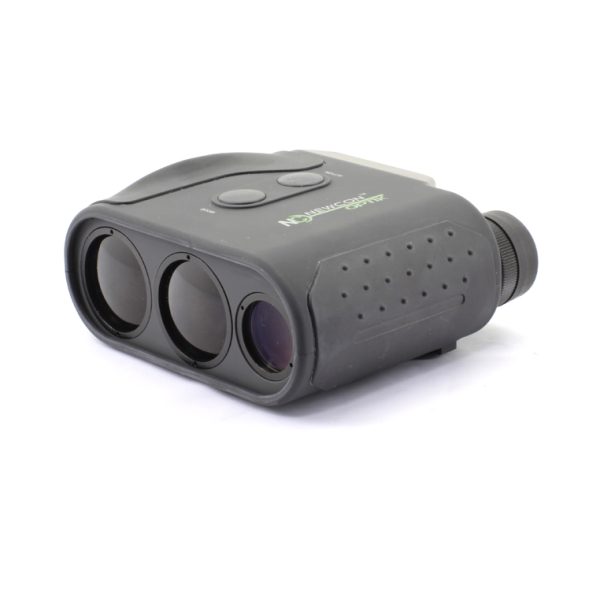

LRM 1500M

The LRM 1500M combines excellent 7x optics with the world’s most advanced laser rangefinder technology. Revised approaches in optical and electronic engineering allow target acquisition at longer distances with better reliability under a wider range of weather conditions.

This model allows observation of distant objects with superb image quality plus it measures the distance to the object up to 1,500 meters (output display in yards also).

1,500 meter range
Eye safe
Meters/yards display
Lightweight design
Easy to use
Optics
Magnification (x) 7
Objective lens diameter (mm) 25
Field of view (°) 8
Eye relief (mm) 15
Diopter adjustment range ±4
Rangefinder

Eye safety

Class 1, eye-safe

Wavelength (nm)

905

Measuring distance range (m)*

10 – 1,500

Distance measurement accuracy (m)

±1

Speed detection

No

First/last target logic

No

Scan mode Yes
Display

Meters/yards display

Yes

Computer output, type

None

Last 10 readings recall Yes

Reticle pattern selection

Yes

Target quality indicator Yes

Low battery indicator

Yes

Mechanics, Electronics & Environmental

Dimensions (mm)

127x125x60

Weight without batteries (g)

445

Power Supply

9V

Battery life (# of measurements)

5,000

Operating temperature range (°C)

-25 to +50

Storage temperature range (°C)

-45 to +65

Waterproofing

IP63

*2.3×2.3m NATO standard target
