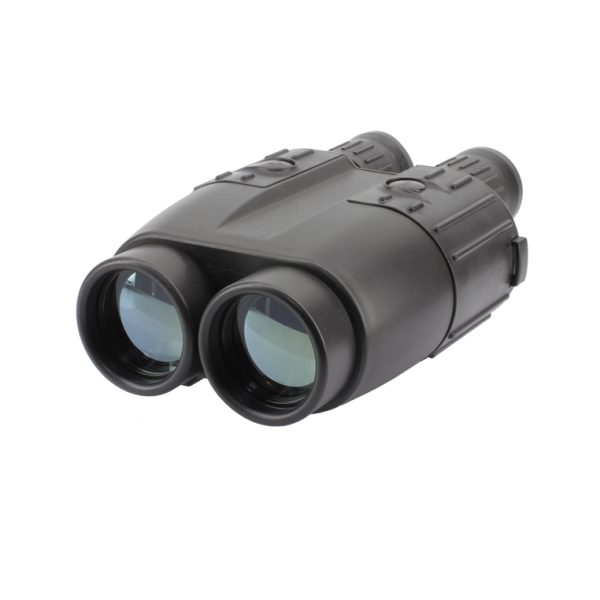

LRB 4000CI

NSN#: 1240-20-001-9644

The LRB 4000CI medium range laser rangefinder binoculars combine uncompromised 7×50 optics with advanced data processing algorithms. The rangefinder instantly measures distance up to 4,000 meters (output display in yards also), accurate azimuth and inclination via an in-built digital magnetic compass, and speed using the highly accurate time-of-flight delay method. LRB 4000CI also features RS-232 interface that enables immediate data acquisition by computers, external GPS receivers and various ballistic computers.

A gating algorithm implemented in LRB 4000CI dramatically improves reliability of measurement in unfavourable measurement conditions (e.g. rain, snow, bushes, wires, etc). Low power-consumption (one battery lasts for more than 5000 shots), ergonomic rubber-armoured body, long eye-relief, simple two-button operation, and wide objective lenses make observation and distance measurement with these binoculars accurate and comfortable.

4,000 metre range
Distance, Azimuth and Elevation measurements
Speed Detection
MIL-STD-810G
Optics
Magnification (x) 7
Objective lens diameter (mm) 50
Field of view (°) 5
Eye relief (mm) 18
Diopter adjustment range ±4
Interpupillary distance (mm) 58 – 72
Rangefinder

Eye safety

Class 1, eye-safe

Wavelength (nm)

905

Measuring distance range (m)*

10 – 4,000

Distance measurement accuracy (m) ±1
Azimuth measurement accuracy (°/mils) ±1 / 17

Inclination measurement accuracy (°/mils)

±0.5 / 8.8

Speed detection

Yes

First/last target logic

Yes

Scan mode Yes
Peripheral compatability PLGR, Bal Comp, PC, BT, Android
Display

Meters/yards display

Yes

Display type

LCD

Computer output, type

Bi-directional RS-232

Last 10 readings recall Yes

Reticle pattern selection

Yes

Low battery indicator

Yes

Mechanics, Electronics & Environmental

Dimensions (mm)

210x150x80

Weight without batteries (g)

1,300

Power Supply

9V Non-Magnetic

Battery life (# of measurements)

5,000

Operating temperature range (°C)

-25 to +50

Storage temperature range (°C) -45 to +55
Waterproofing IP66

*2.3×2.3m NATO standard target
